Monitor Scantool Data
WARNING: This page is about a different variant/trim than selected.

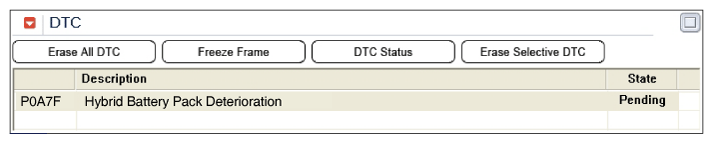

- Ignition "ON" < Engine "OFF", select "DTC Diagnostics" mode.
- Check DTC is set on the scan tool when DTC self-diagnostics.
- Erase DTC with scantool.
- Is the DTC set again?
YES
- Go to "W/HARNESS INSPECTION " procedure in the inspection/Repair menu.
NO
- Displaying nothing (no DTC) or DTC with label "H" (Historical) shows that Fault is intermittent caused by poor contact in the part's and/or BMS connector or was repaired and BMS memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
