Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

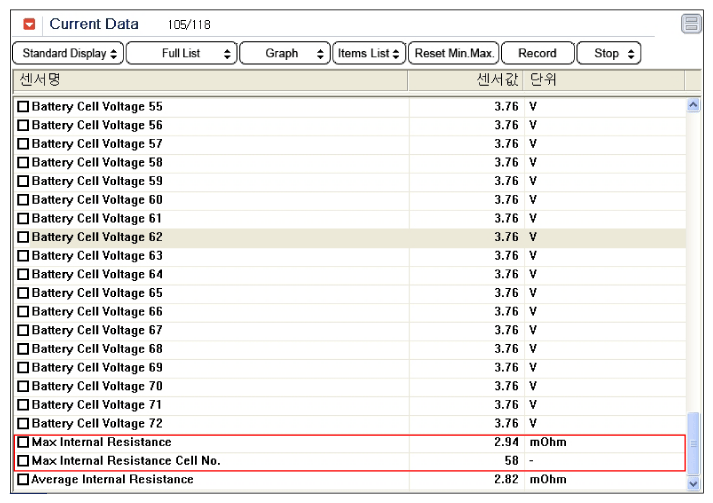

Fig 1: Screen Display - SOC 47.5.% Of High Voltage Battery, (Current Data) - Max Cell Resistance Of High Voltage Battery In Key ON Status
G10601441Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - SOC 47.5% Of High Voltage Battery, (Current Data) - Max Cell Resistance Of High Voltage Battery In EV Mode Status
G10601442Courtesy of HYUNDAI MOTOR AMERICA
