Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

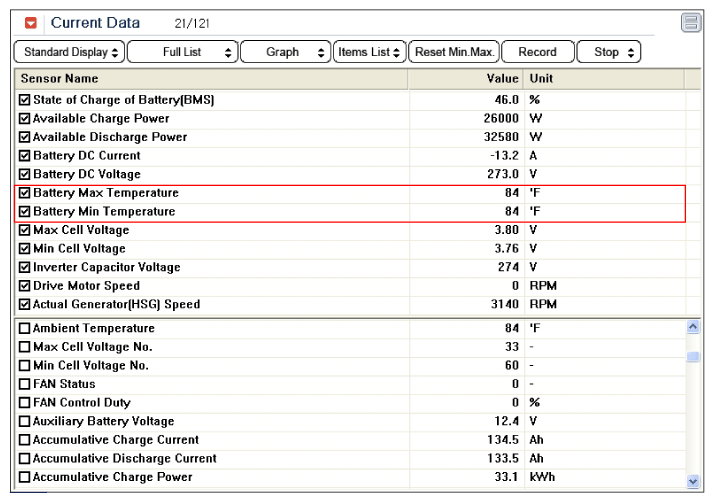

Fig 1: Screen Display - SOC 46% Of High Voltage Battery - Max And Min Temperature 84°F At EV Mode

Courtesy of HYUNDAI MOTOR AMERICA

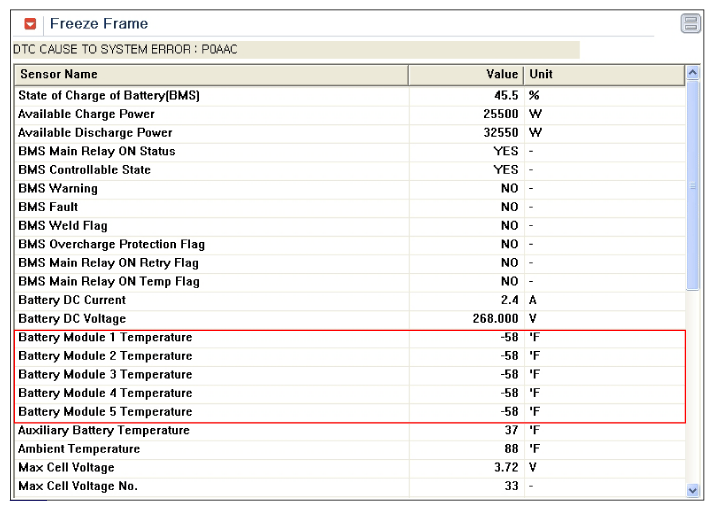

Fig 2: Screen Display - SOC 45.5% Of High Voltage Battery - Freeze Frame Data-58°F After Disconnecting Temperature Sensor Connector

Courtesy of HYUNDAI MOTOR AMERICA

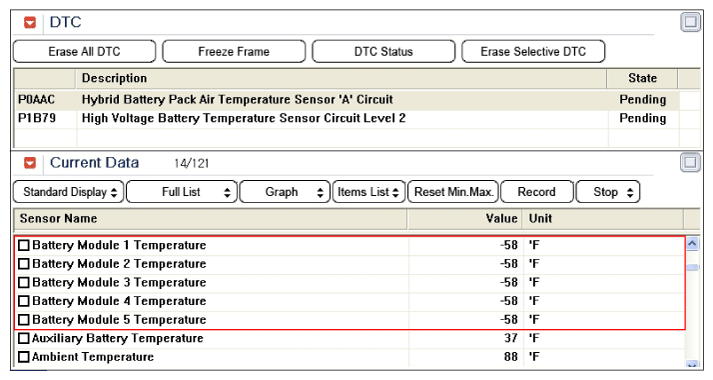

Fig 3: Screen Display - Temperature 58°F After Disconnecting Temperature At EV Mode

Courtesy of HYUNDAI MOTOR AMERICA

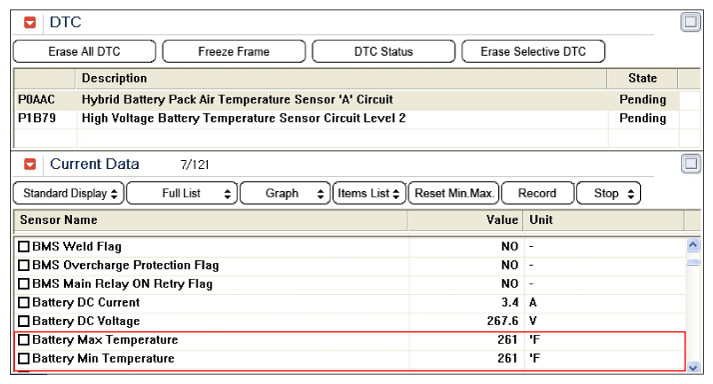

Fig 4: Screen Display - Max And Min Temperature 261°F After Disconnecting Temperature Sensor Connector At EV Mode

Courtesy of HYUNDAI MOTOR AMERICA
