Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

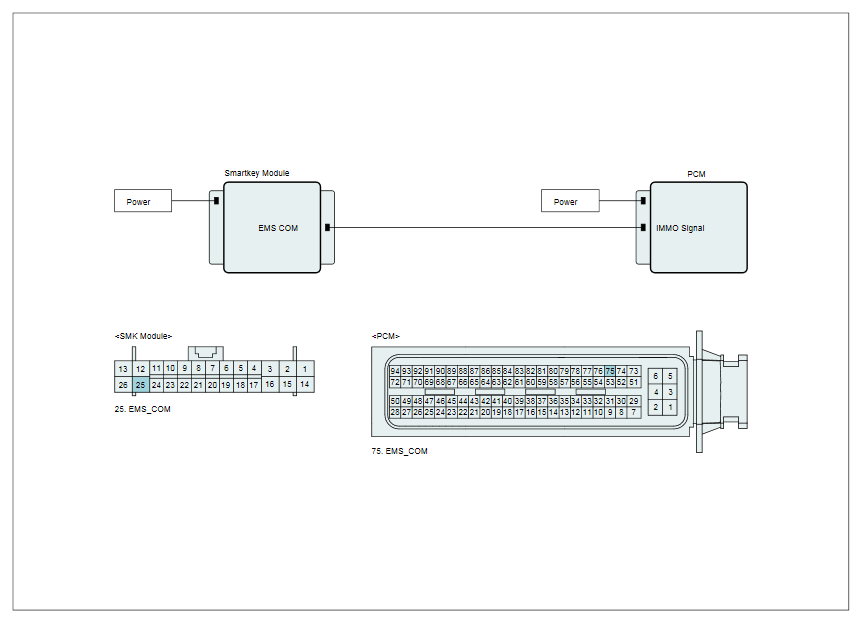

Fig 1: Smartkey Module Diagnostic Circuit Diagram & Connector End Views
G10603232Courtesy of HYUNDAI MOTOR AMERICA
