Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

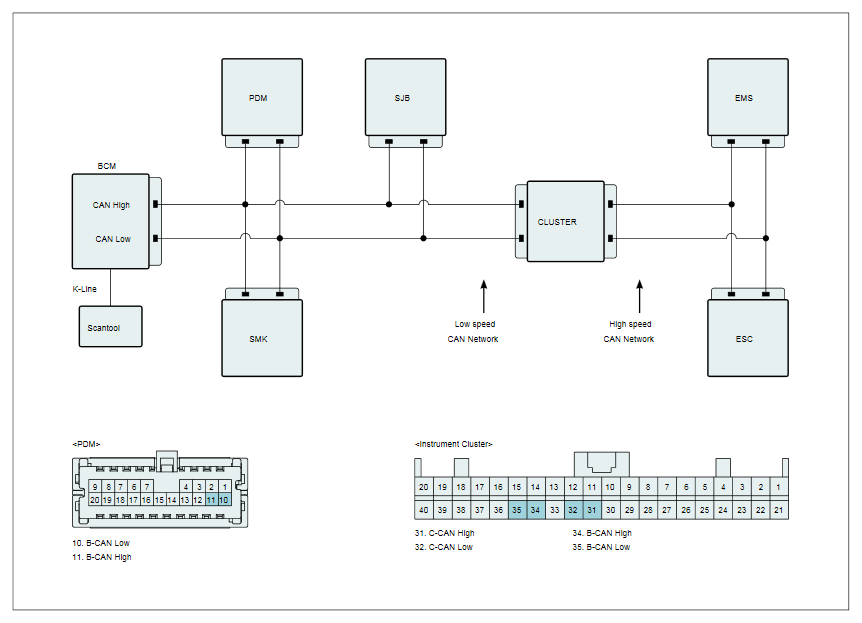

Fig 1: BCM CAN Diagnostic Circuit Diagram & Connector End Views
G10603226Courtesy of HYUNDAI MOTOR AMERICA

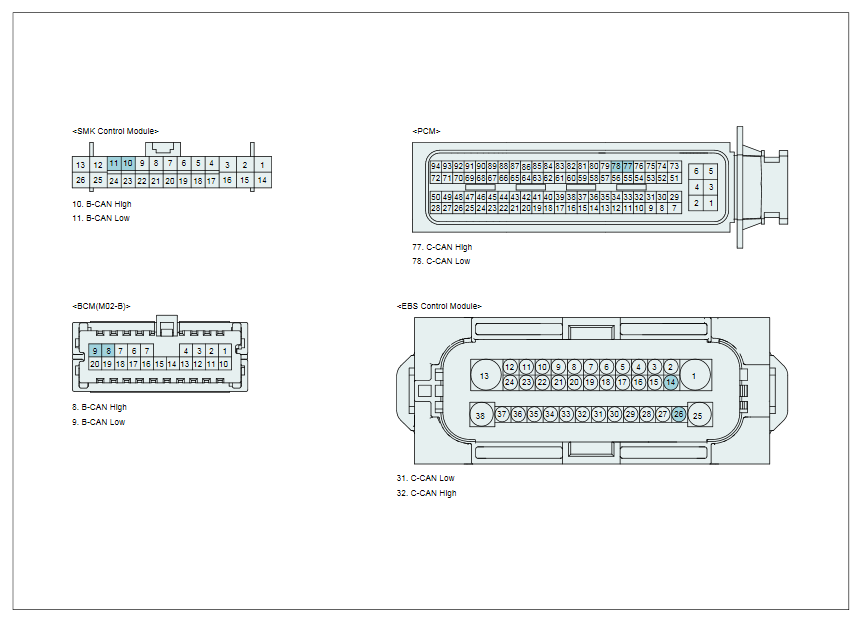

Fig 2: BCM, EBS, PCM & SMK Control Module Connector End Views
G10603227Courtesy of HYUNDAI MOTOR AMERICA
