Section 91 (Hybrid Control System (HEV))
>>
HCU (Hybrid Control Unit)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

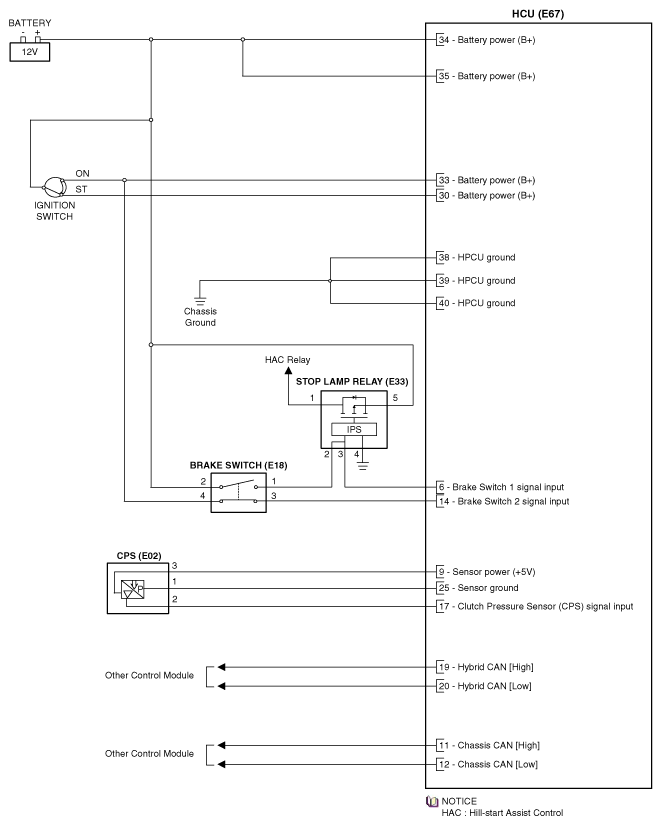

Fig 1: Hybrid Control Unit Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
