Component Location

WARNING: This page is about a different variant/trim than selected.

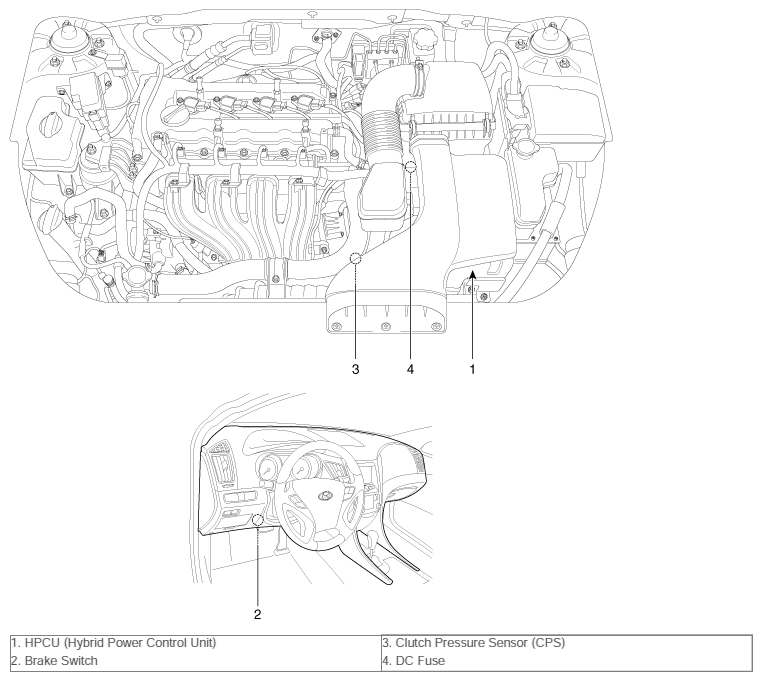

Fig 1: Identifying Hybrid Power Control Unit, Brake Switch, Clutch Pressure Sensor And DC Fuse

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).

NOTE: For the location of the other control modules, refer to the relevant service information.

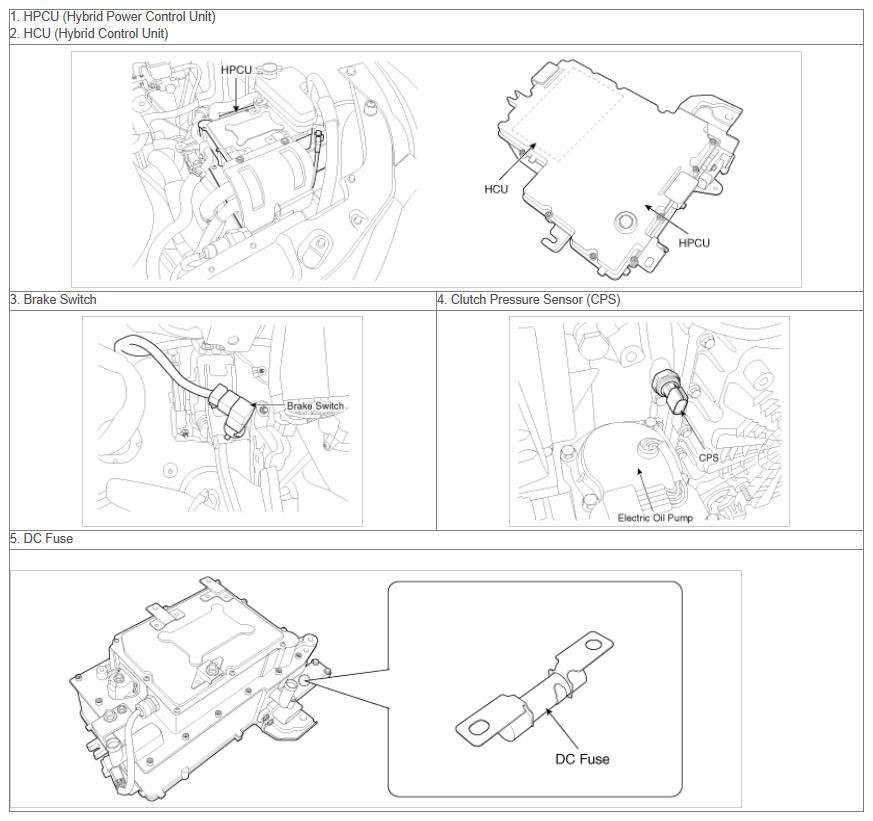

Fig 2: Identifying Hybrid Power Control Unit Related Components

Courtesy of HYUNDAI MOTOR AMERICA
