Section 91 (Hybrid Control System (HEV))
>>
Clutch Pressure Sensor (CPS)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

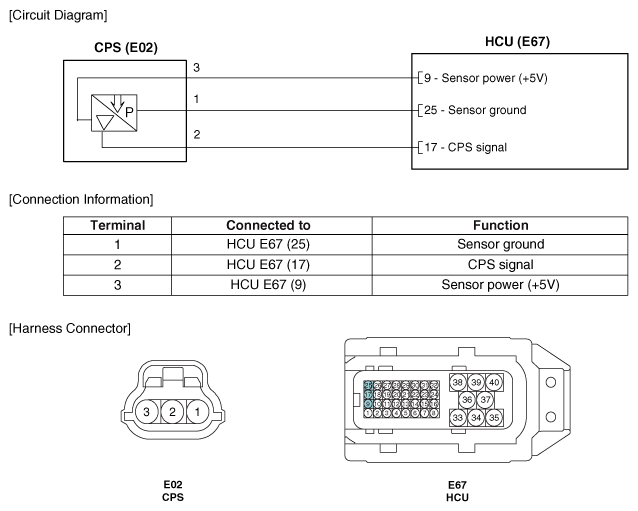

Fig 1: Clutch Pressure Sensor Circuit Diagram & Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
