Monitor Scantool data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scantool to Data Link Connector (DLC).
  2. IGN "ON" & Engine "OFF".
  3. Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter on the Scantool.

    Specification:  'LEARNT'

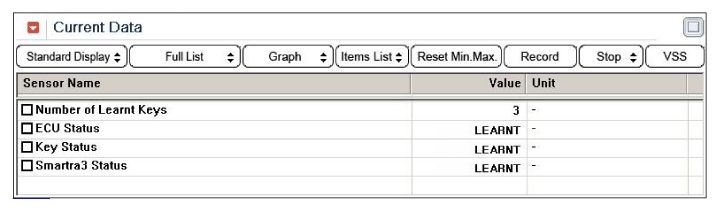

    Fig 1: Screen Display - ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt
    G10602960Courtesy of HYUNDAI MOTOR AMERICA
  4. Has the "SMARTRA STATUS" been learnt?

    YES

    • Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then register transponder and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
