Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Check status.
1. IGN "ON" & Engine "OFF".
2. Monitor the "PCM, Key and Smartra Status" Parameter on the Scantool.
  Specification: 'LEARNT'

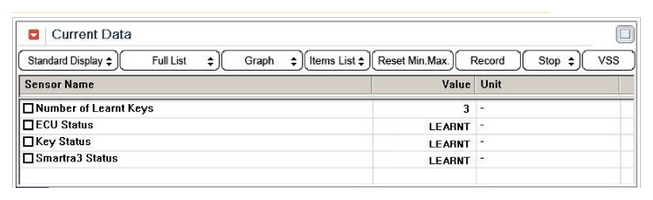

  Fig 1: Screen Display - ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt
  Courtesy of HYUNDAI MOTOR AMERICA
3. Is the "ECU STATUS" Parameter "Locked"?
  YES
  - Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then turn the key OFF for 10 seconds. Next register transponder and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the PCM or SMARTRA. And this DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
