Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

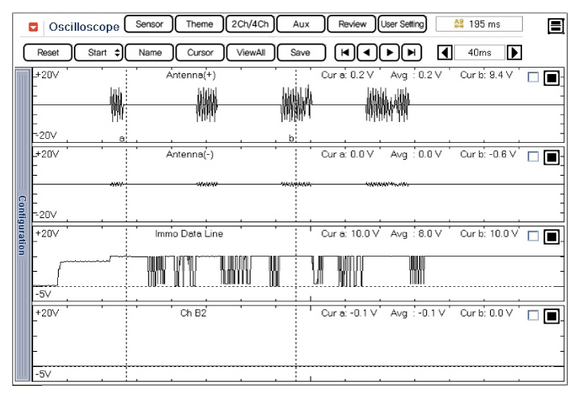

Fig 1: Screen Display - Normal Signal Waveform Of Antenna And Immobilizer Communication
G10603007Courtesy of HYUNDAI MOTOR AMERICA
