Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.
Fig 1: I/P Junction Box Circuit Diagram
G10603005Courtesy of HYUNDAI MOTOR AMERICA

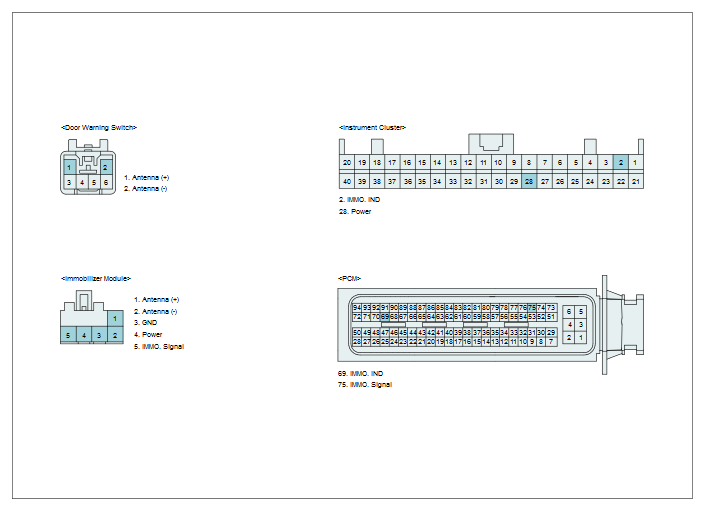

Fig 2: Door Warning Switch Terminals
G10603006Courtesy of HYUNDAI MOTOR AMERICA
