Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

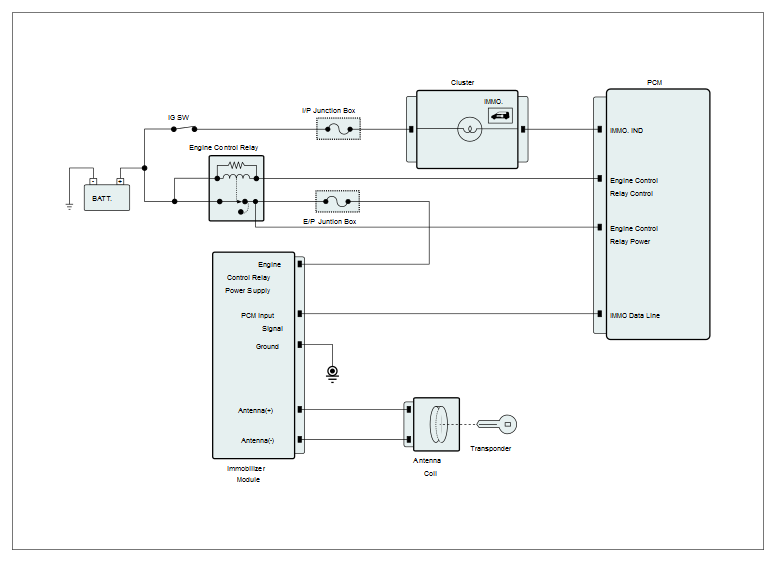

Fig 1: I/P Junction Box Circuit Diagram
G10603000Courtesy of HYUNDAI MOTOR AMERICA

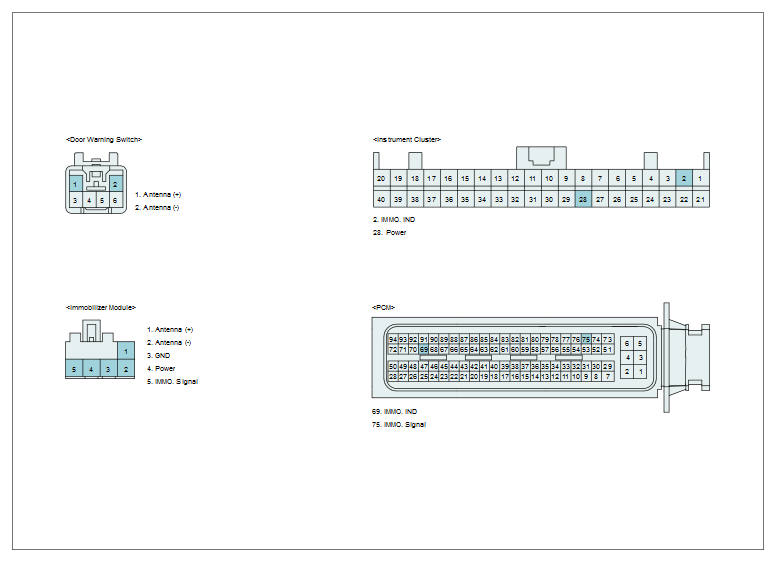

Fig 2: Immobilizer Module Terminals
G10603001Courtesy of HYUNDAI MOTOR AMERICA
