Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

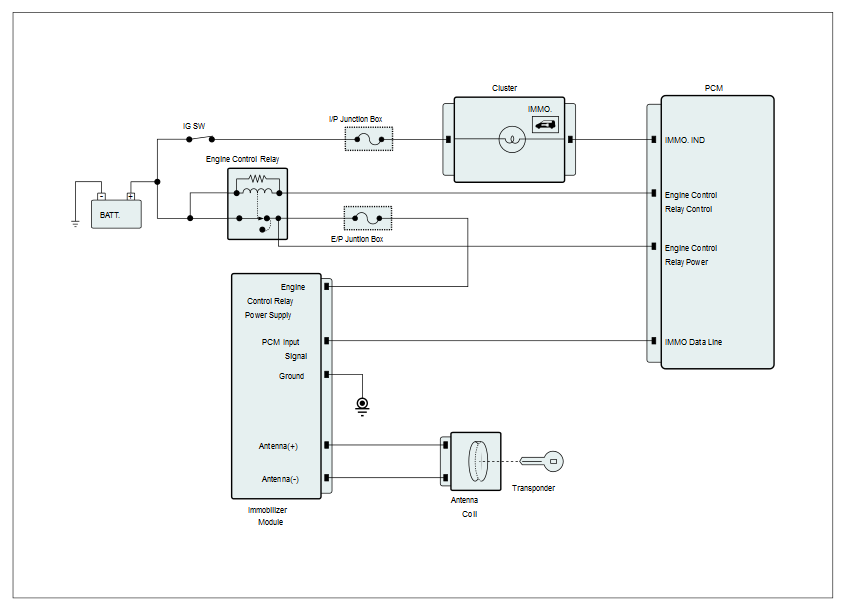

Fig 1: I/P Junction Box Circuit Diagram
G10602995Courtesy of HYUNDAI MOTOR AMERICA

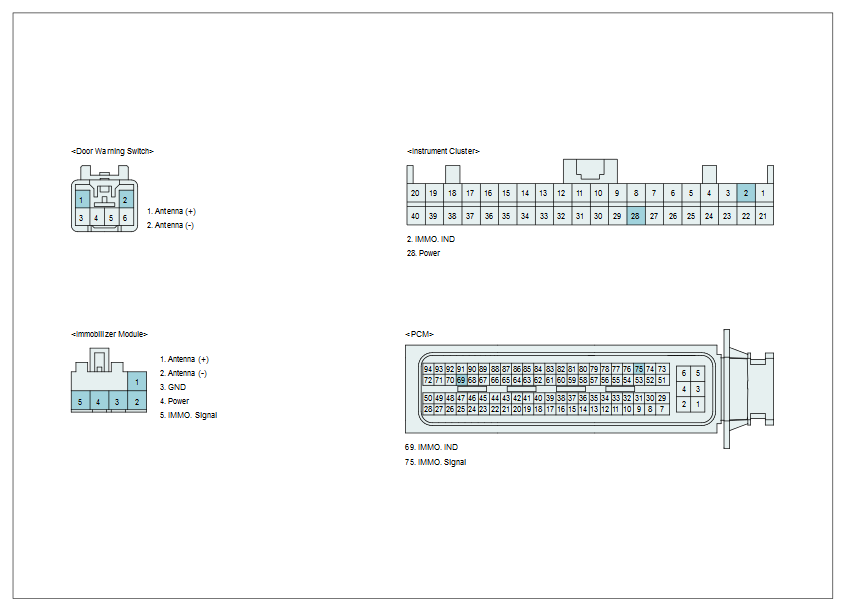

Fig 2: Door Warning Switch Terminals
G10602996Courtesy of HYUNDAI MOTOR AMERICA
