Control Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Open in Harness

IG KEY OFF.
Connect SMARTRA connector and disconnect PCM connector.
IG KEY ON & Engine "OFF".
Measure voltage between indicator terminal of PCM harness connector and chassis ground.
Specification: BATT.

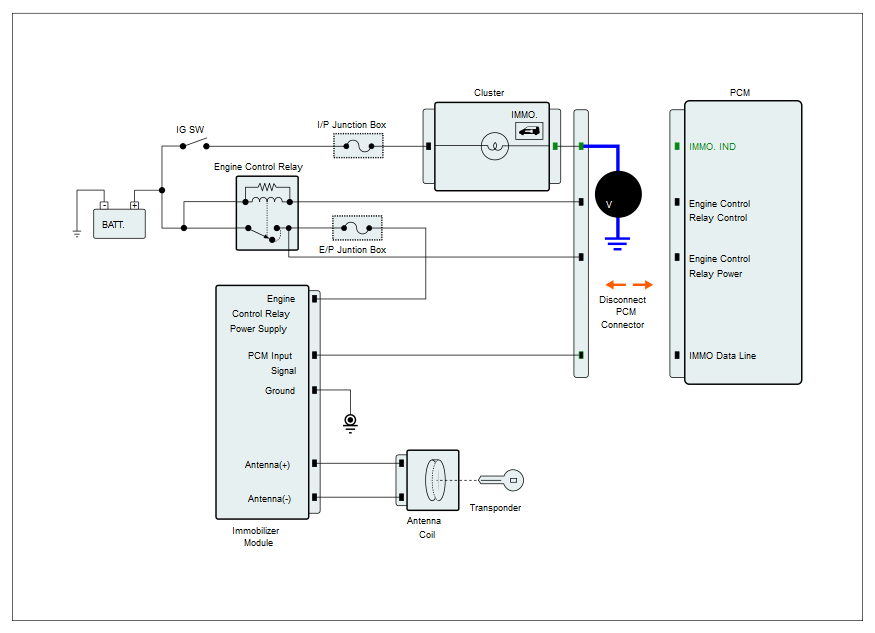

Fig 1: I/P Junction Box Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

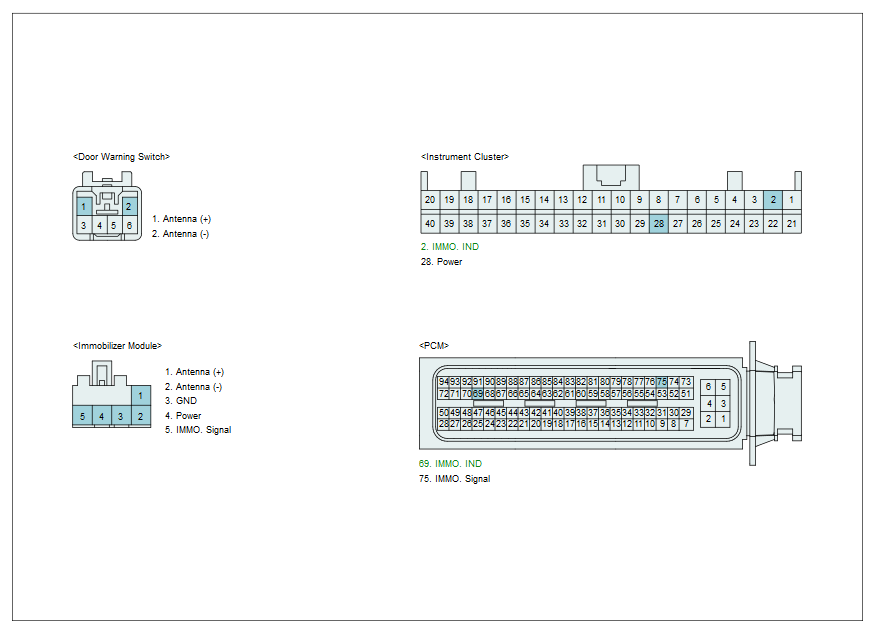

Fig 2: Immobilizer Module Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured voltage within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for open or short in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
