Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Check status.
    1. IGN "ON" & Engine "OFF".
    2. Monitor the "PCM, Key and Smartra Status" Parameter on the Scantool.

      Specification:  'LEARNT'

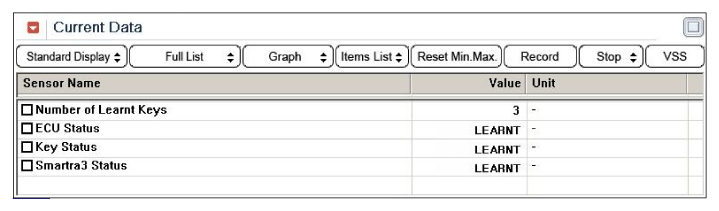

      Fig 1: Screen Display - ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt
      G10602950Courtesy of HYUNDAI MOTOR AMERICA
    3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the PCM or SMARTRA. And This DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
