Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Check status.
1. IGN "ON" & Engine "OFF".
2. Monitor the "PCM, Key and Smartra Status" Parameter on the Scantool.
  Specification: 'LEARNT'

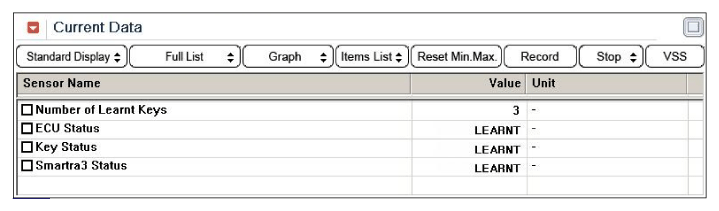

  Fig 1: Screen Display - ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt
  Courtesy of HYUNDAI MOTOR AMERICA
3. Have both the PCM and KEY status been learnt?
  YES
  - Substitute with known good "virgin" transponder and go to "COMPONENT INSPECTION " Procedure.
  NO
  - Go to "COMPONENT INSPECTION " Procedure.
