Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.
Fig 1: Cluster Circuit Diagram
G10602942Courtesy of HYUNDAI MOTOR AMERICA

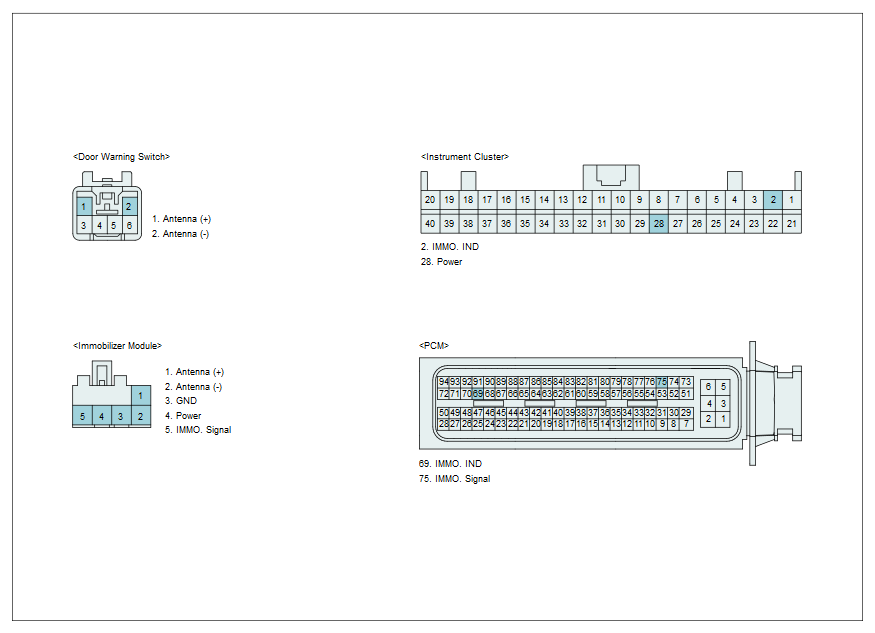

Fig 2: Door Warning Switch Terminals
G10602943Courtesy of HYUNDAI MOTOR AMERICA
