Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Check status.
1. IGN "ON" & Engine "OFF".
2. Monitor the "PCM Status" Parameter on the Scantool.
  Specification: 'LEARNT'

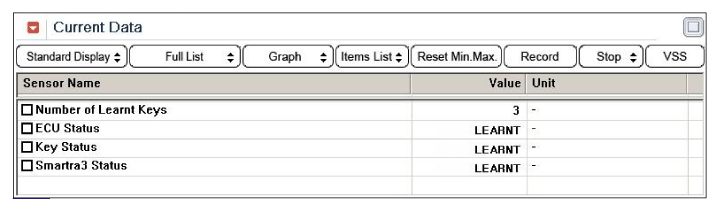

  Fig 1: Screen Display - ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt
  Courtesy of HYUNDAI MOTOR AMERICA
3. Has the PCM been learnt?
  YES
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a EMS equipped with Immobilizer and perform the Key teaching procedure with scantool and check for proper operation.
    If the problem is corrected, replace EMS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NOTE: If the EMS is only replaced using an existing key and SMARTRA 3, after replacing the "virgin" or "neutral" EMS, reteaching is possible by key Learning mode of scanner.
    When the same PIN used in existing vehicle is only inputted, the SMARTRA 3 Learning and key Learnings are possible.
