Section 90 (Immobilizer System Diagnosis (HEV))
>>
DTC P1610: Non-Immobilizer-EMS Connected To An Immobilizer
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

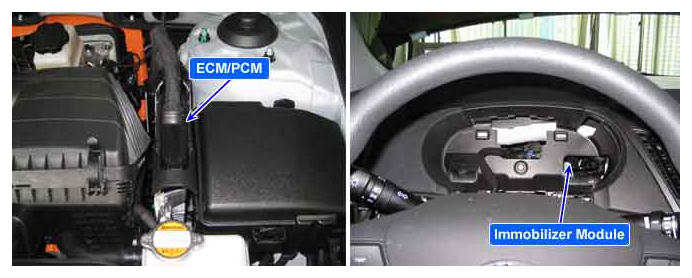

Fig 1: Immobilizer Module And ECM/PCM Component Location
Courtesy of HYUNDAI MOTOR AMERICA
