Section 87 (Blower System (HEV))
>>
Blower Unit
>>
Components and Components Location
>>
Components
Components and Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

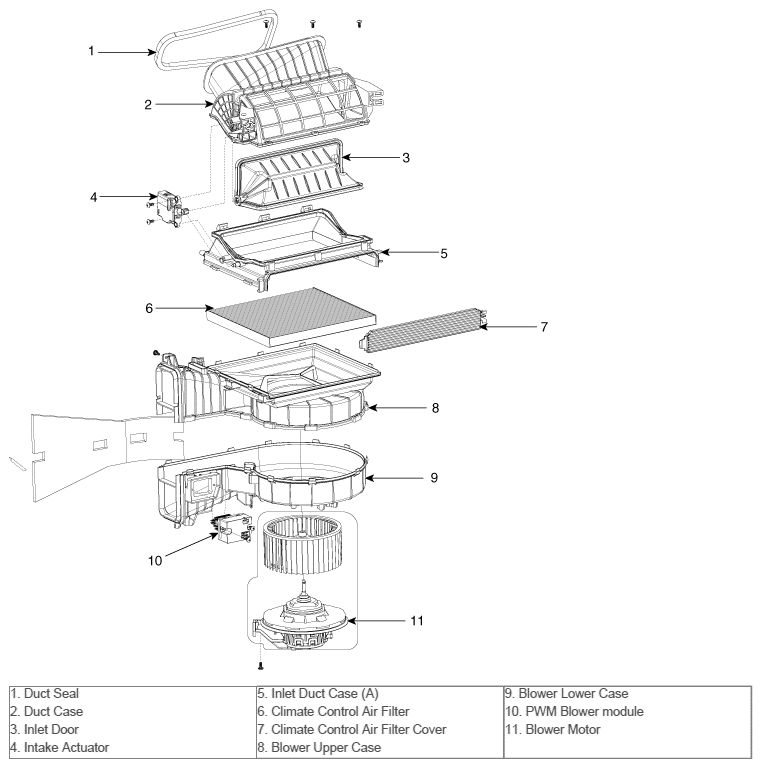

Fig 1: Exploded View Of Blower Unit
Courtesy of HYUNDAI MOTOR AMERICA
