Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

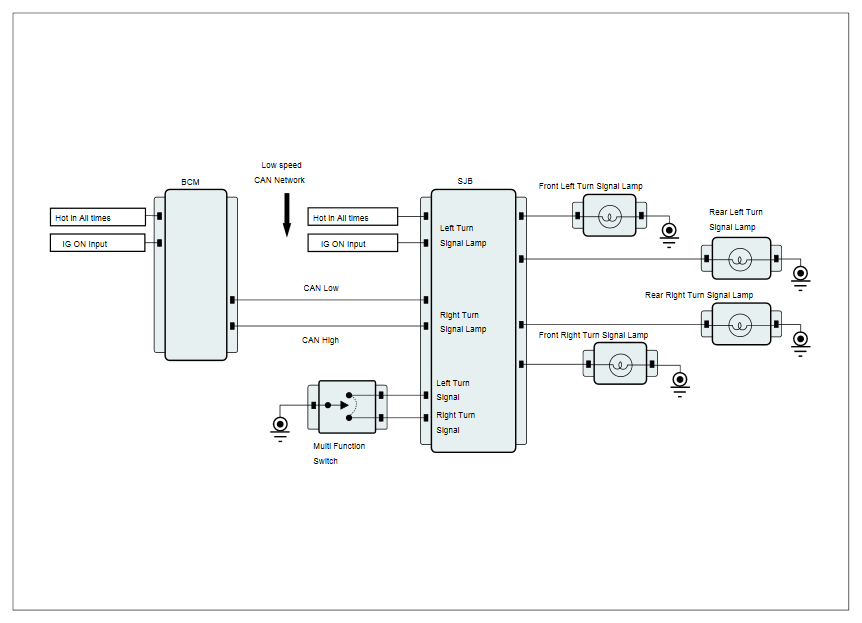

Fig 1: Right Turn Signal Lamp Diagnostic Circuit Diagram
G10603190Courtesy of HYUNDAI MOTOR AMERICA

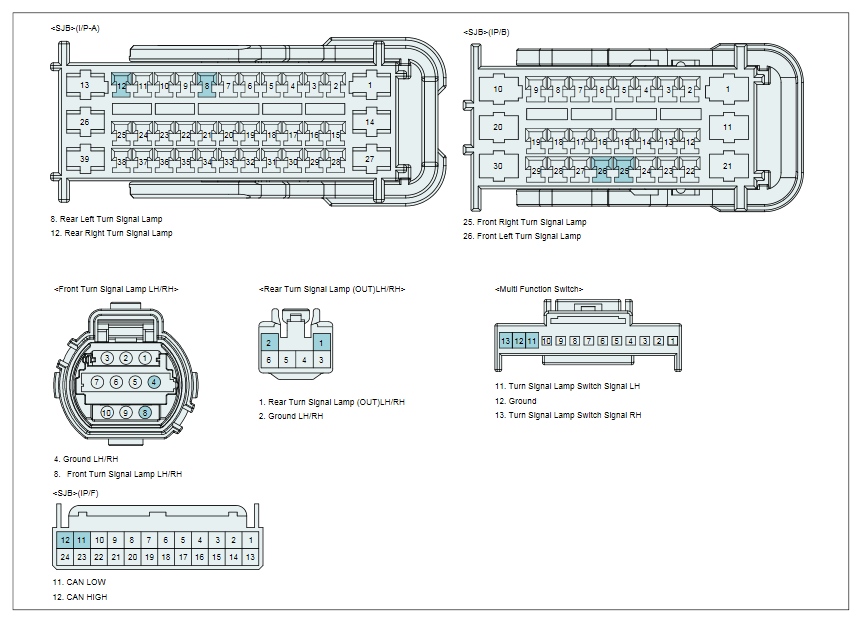

Fig 2: Front Turn Signal Lamp Connector Terminals
G10603191Courtesy of HYUNDAI MOTOR AMERICA
