GDS Data Analysis
WARNING: This page is about a different variant/trim than selected.
- Connect GDS.
- IG "ON" and Engine "OFF".

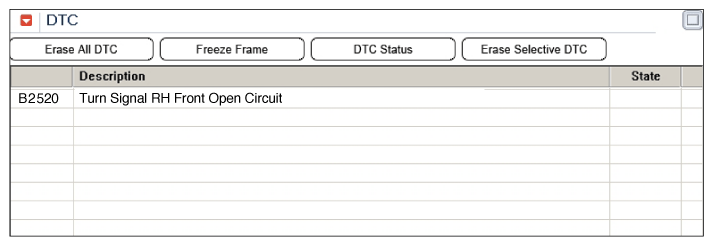

- Select "DTC Analysis" mode.
- After erase DTC, keep the vehicle condition within "the Enable Conditions" (Refer to "DTC DETECTING CONDITION " table).
- Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or SJB's connector or was repaired and SJB memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
■ Check Internal Tail Lamp
- IG "OFF" and connect GDS.
- IG "ON" & ENG "OFF".

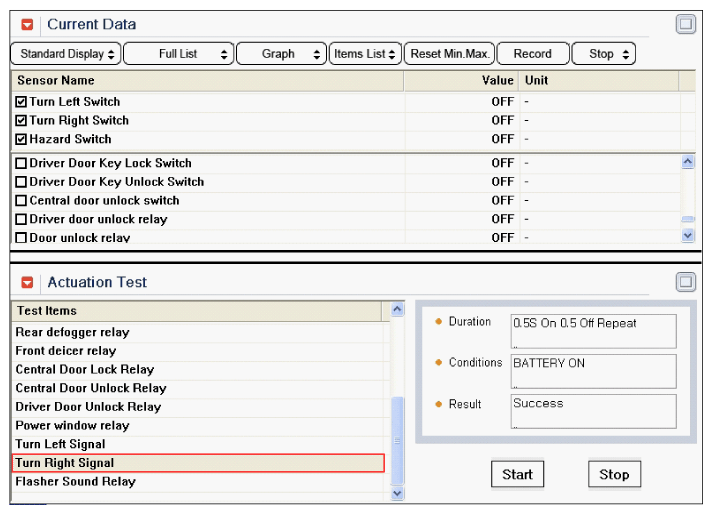

- Select "Actuation Test and current data" mode.
- Execute "Right Turn Signal Lamp" test.
- Is right turn signal lamp working normal?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next procedure.
