Rear Left Turn Signal Lamp Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check Open in Harness

IG "OFF", disconnect battery (-) terminal.
Disconnect SJB connector.
Measure resistance between the Rear Left turn signal lamp terminal of SJB harness connector and ground of the Rear left turn signal lamp.
Specification : Approx. 1

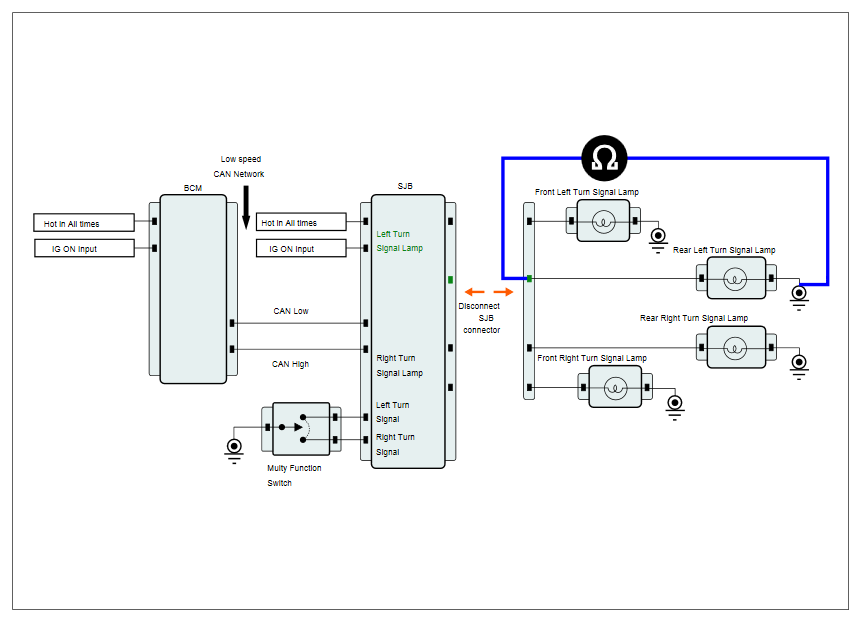

Fig 1: Measuring Resistance Between Rear Left Turn Signal Lamp Terminal And Ground
Courtesy of HYUNDAI MOTOR AMERICA

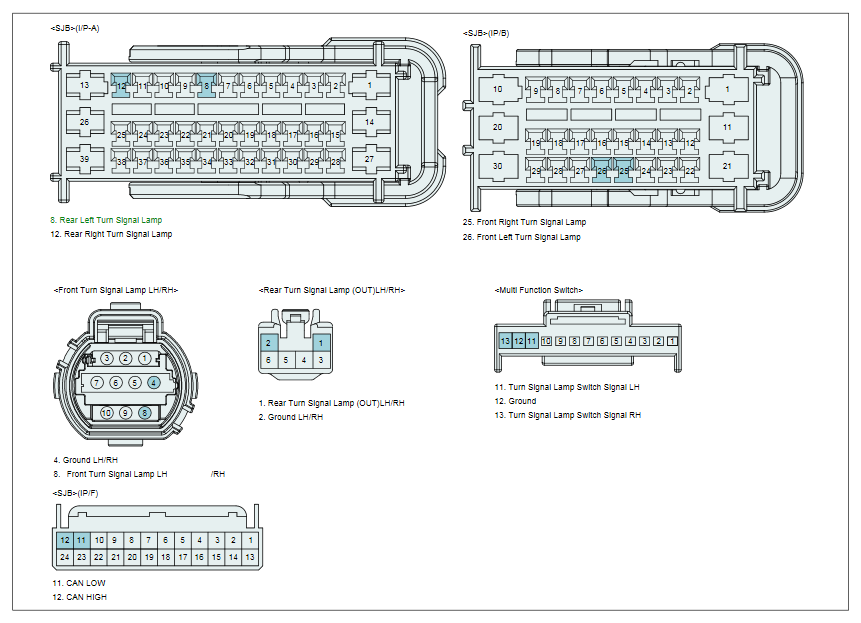

Fig 2: Turn Signal Lamp Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specification?
YES
- Substitute with a known-good SJB and check for proper operation.
  If the problem is corrected, replace the SJB and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Repair open in circuit of Rear Left Turn Signal Lamp or Rear Left Turn Signal Lamp internal open, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
