Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

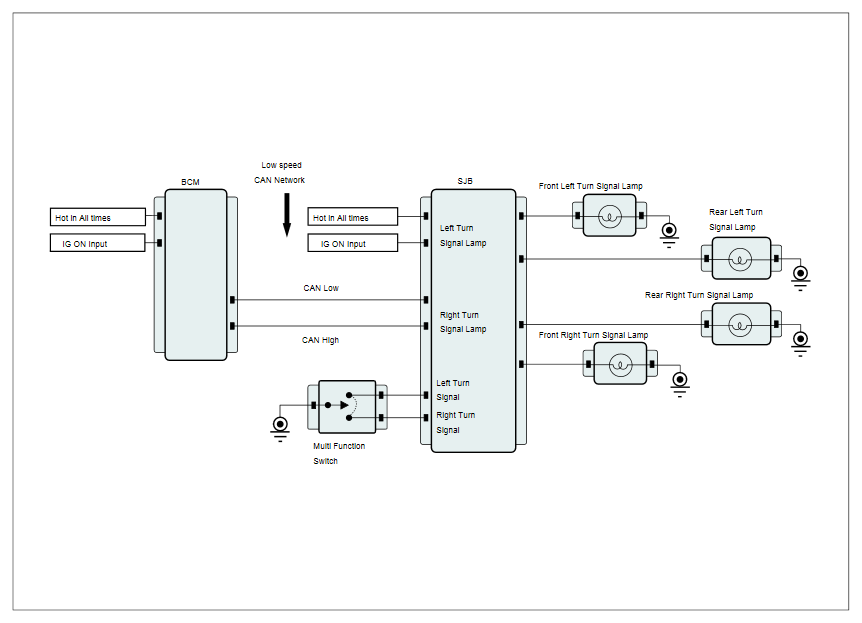

Fig 1: Turn Signal Lamp Diagnostic Circuit Diagram
G10603144Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Turn Signal Lamp Connector Terminals
G10603137Courtesy of HYUNDAI MOTOR AMERICA
