Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

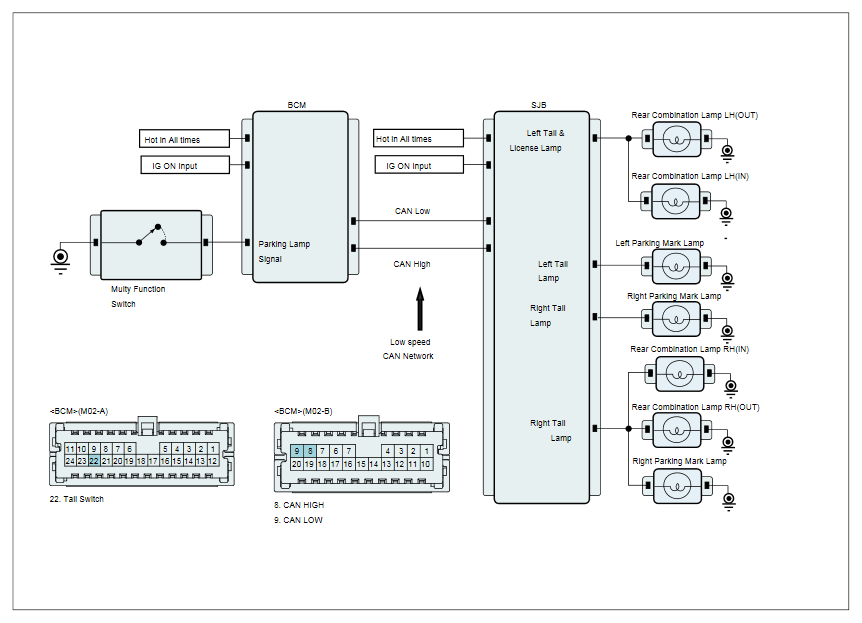

Fig 1: Multi Function Switch Diagnostic Circuit Diagram
G10603116Courtesy of HYUNDAI MOTOR AMERICA

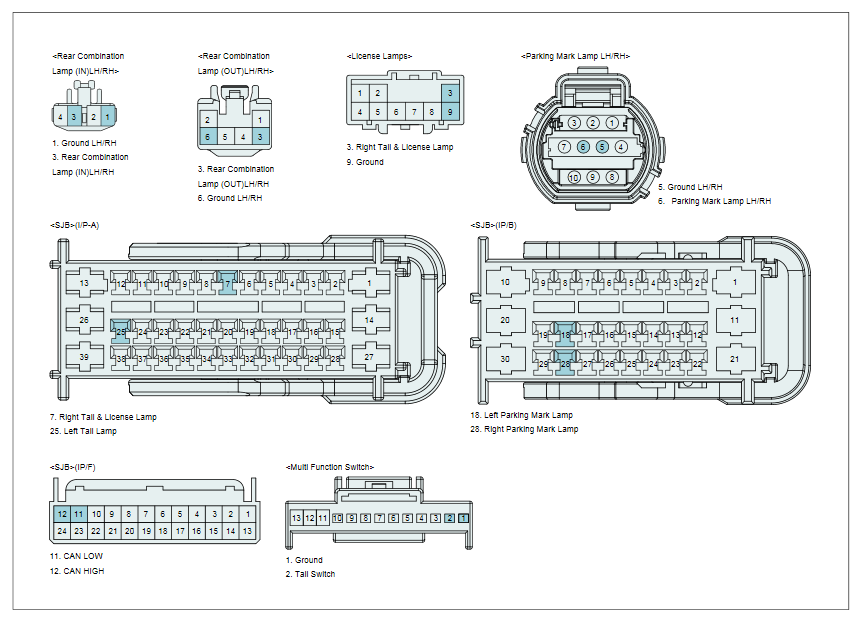

Fig 2: Multi Function Switch Connector Terminals
G10603117Courtesy of HYUNDAI MOTOR AMERICA
