Right External Tail Lamp Circuit Inspection

■ Check Short to Ground in Harness

1. IG "OFF", disconnect battery (-) terminal.
2. Disconnect SJB, Right External Tail Lamp connector.
3. Measure resistance between the Right External Tail Lamp terminal of SJB harness connector and chassis ground.

   Specification  : Infinity

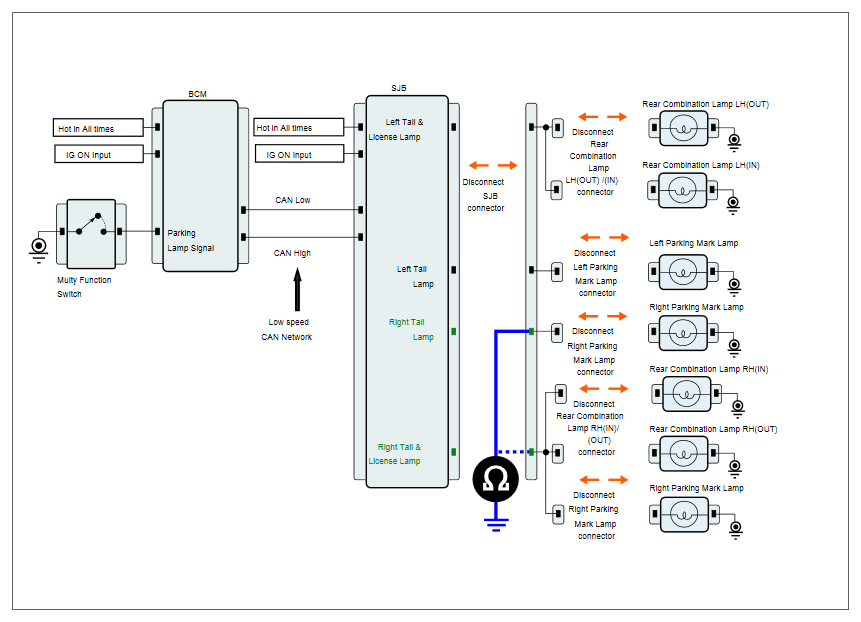

   Fig 1: Measuring Resistance Between Right External Tail Lamp Terminal And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA

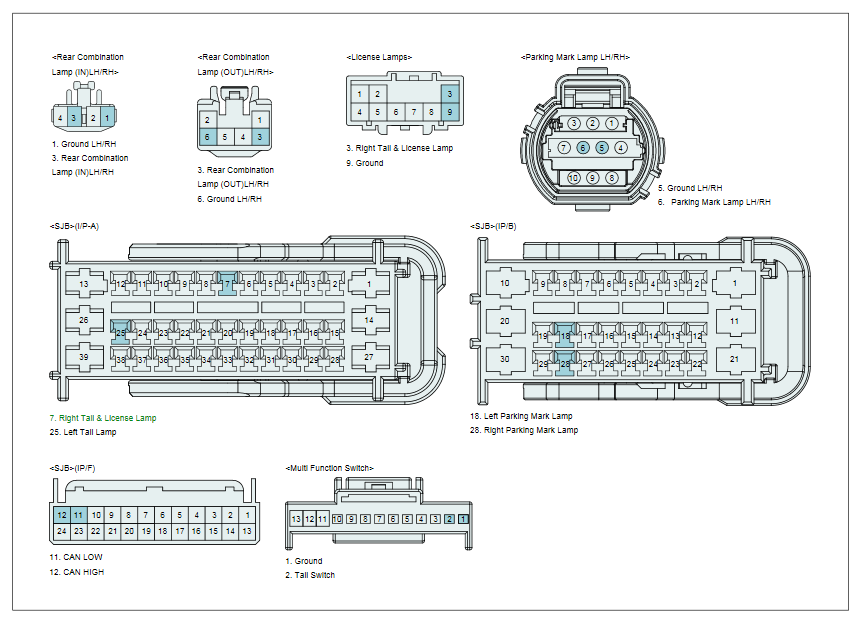

   Fig 2: Multi Function Switch Connector Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?

   YES

   • Substitute with a known - good SJB and check for proper operation.

     If the problem is corrected, replace the SJB and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Repair short to ground in circuit of Right External Tail Lamp, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
