Section 85 (Smart Junction Block Diagnosis (HEV))
>>
DTC B2513: Left Headlamp Low Circuit Short to Ground
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

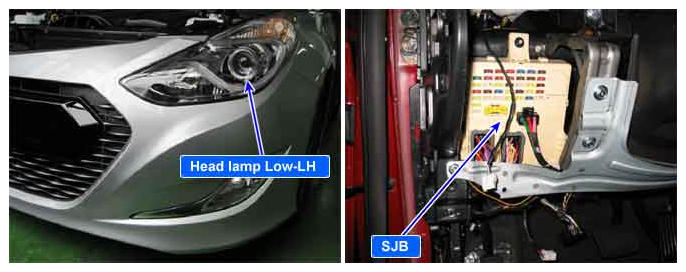

Fig 1: Left Headlamp Low And SJB Component Location
Courtesy of HYUNDAI MOTOR AMERICA
