SJB Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check CAN High Line

IG "ON" & ENG "OFF"
After connect GDS, select "Oscilloscope" mode.
Measure the signal waveform on SJB CAN High line.
Specification : Refer to "Signal Waveform "

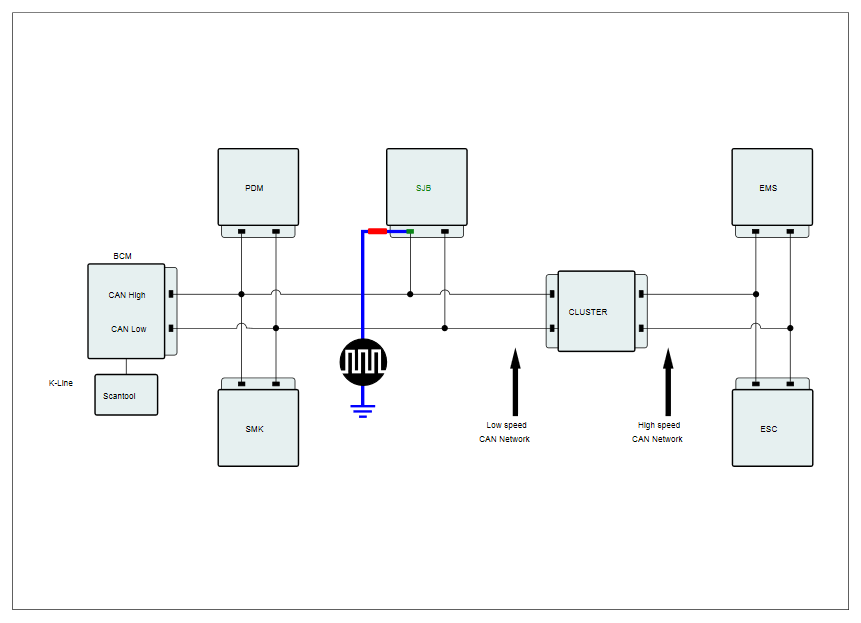

Fig 1: Measuring Signal Waveform On SJB CAN High Line
Courtesy of HYUNDAI MOTOR AMERICA

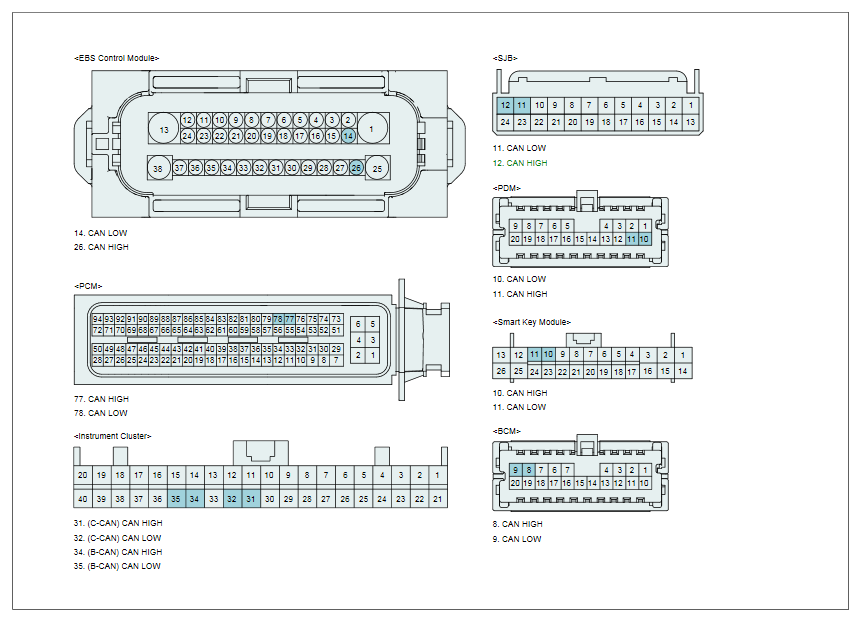

Fig 2: CAN Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Does the measured signal waveform follow the specification?
YES
- Go to "CAN Low Line Inspection " procedure.
NO
- Check short to battery or ground. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check CAN Low Line

IG "ON" & ENG "OFF"
After connect GDS, select "Oscilloscope" mode.
Measure the signal waveform on SJB CAN Low line.
Specification : Refer to "Signal Waveform "

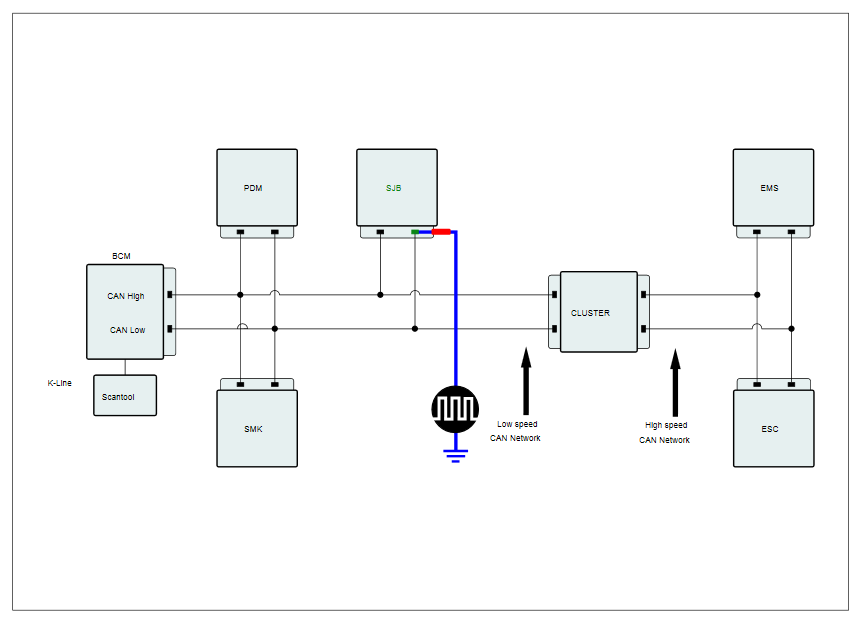

Fig 3: Measuring Signal Waveform On SJB CAN Low Line
Courtesy of HYUNDAI MOTOR AMERICA

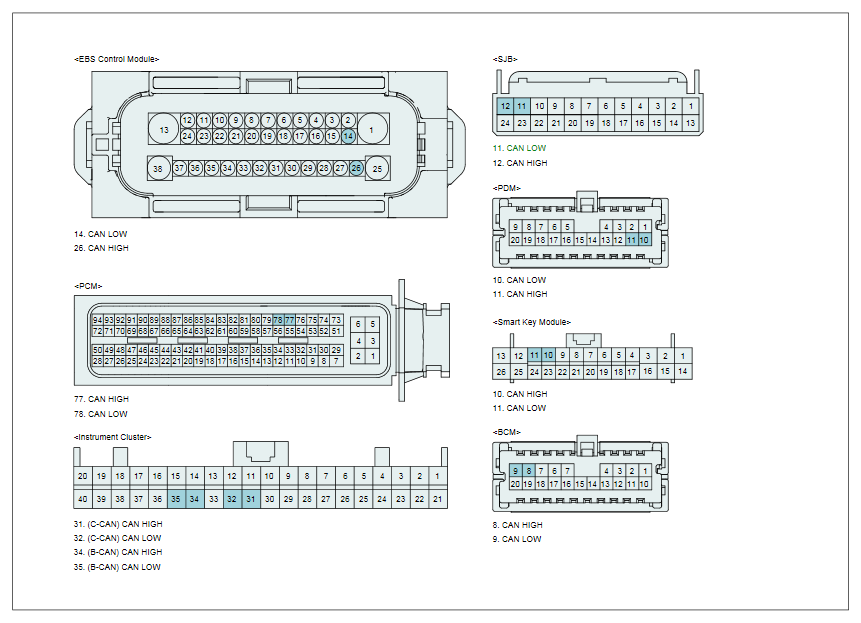

Fig 4: CAN Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Does the measured signal waveform follow the specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check short to battery or ground. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
