Section 84 (HEV Control System Diagnosis (HEV))
>>
DTC U1006: Lost Communication With Battery Energy Control Module 'A' (H-CAN)
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

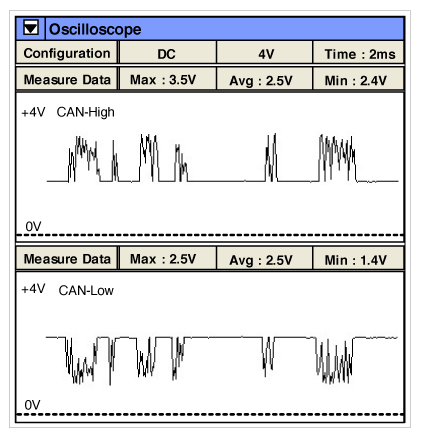

Fig 1: CAN-High Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
