Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.
Fig 1: PCM Circuit Diagram
G10602258Courtesy of HYUNDAI MOTOR AMERICA

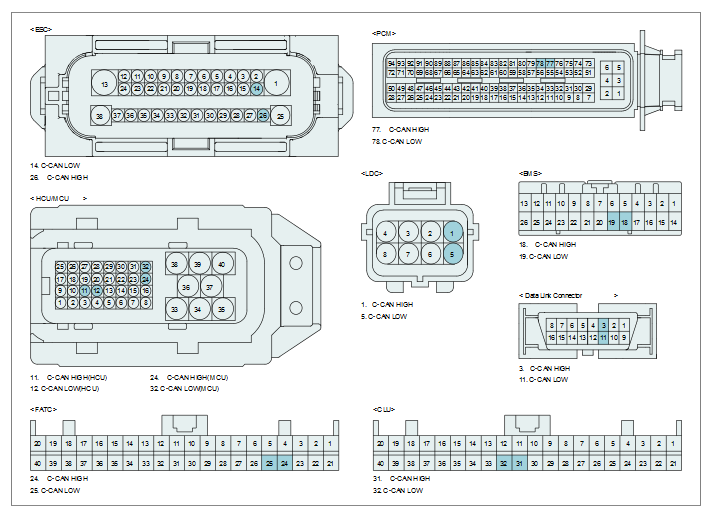

Fig 2: ESC Connector Diagram
G10602259Courtesy of HYUNDAI MOTOR AMERICA
