Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

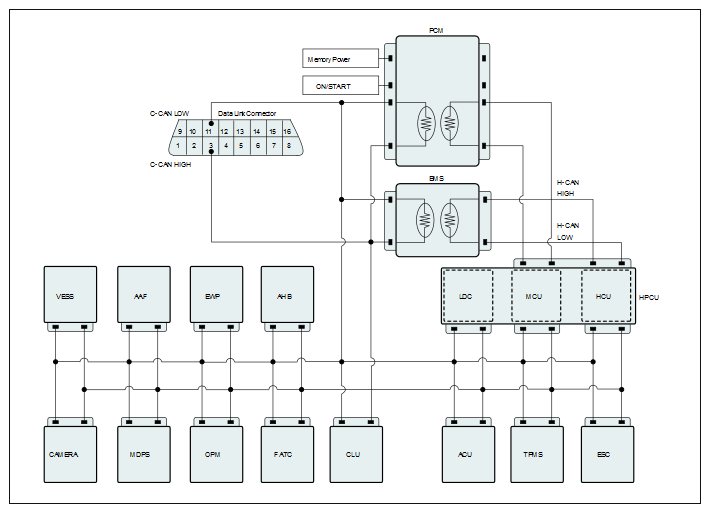

Fig 1: C-CAN LOW Circuit Diagram
G10602252Courtesy of HYUNDAI MOTOR AMERICA

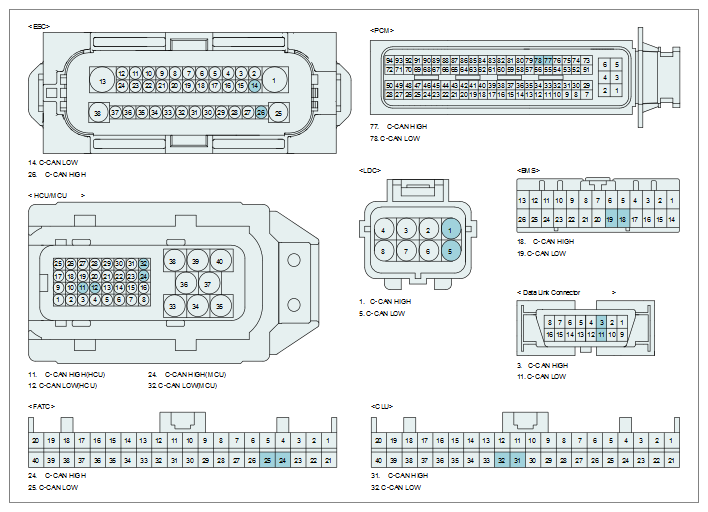

Fig 2: LDC Connector Terminals
G10602253Courtesy of HYUNDAI MOTOR AMERICA
