Section 84 (HEV Control System Diagnosis (HEV))
>>
DTC U1001: High Speed CAN Communication Bus (H-CAN)
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

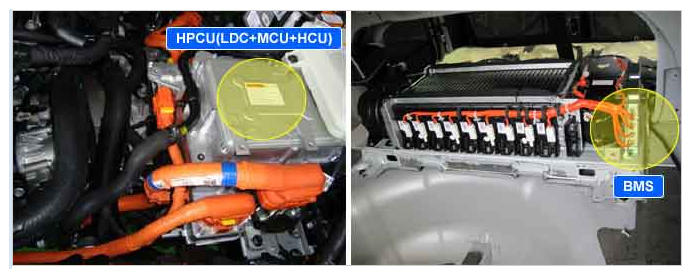

Fig 1: H-CAN Component Location
Courtesy of HYUNDAI MOTOR AMERICA
