CAN Communication Circuit Inspection

■ CAN Communication Line Inspection

1. IG KEY OFF.
2. Disconnect HCU connector and LDC connector.
3. Measure the resistance between CAN-HIGH Terminal of HCU harness connector and CAN-HIGH Terminal of LDC harness connector.
4. Measure the resistance between CAN-LOW Terminal of HCU harness connector and CAN-LOW Terminal of LDC harness connector.

   Specification  : Below 1Ω

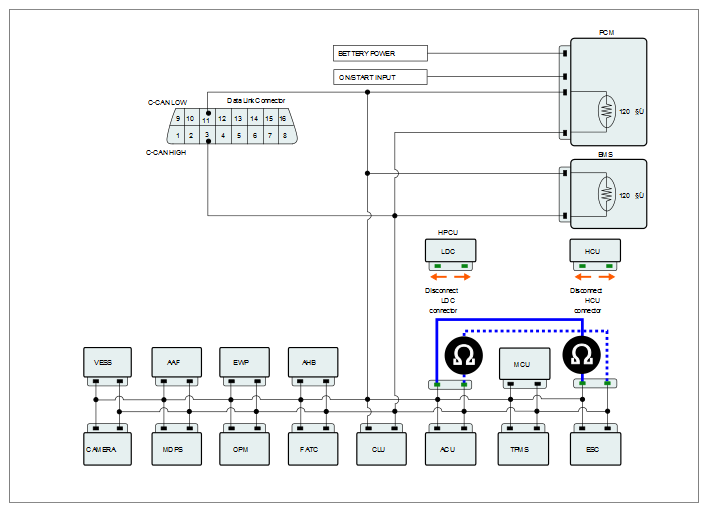

   Fig 1: PCM Circuit Diagram

   Courtesy of HYUNDAI MOTOR AMERICA

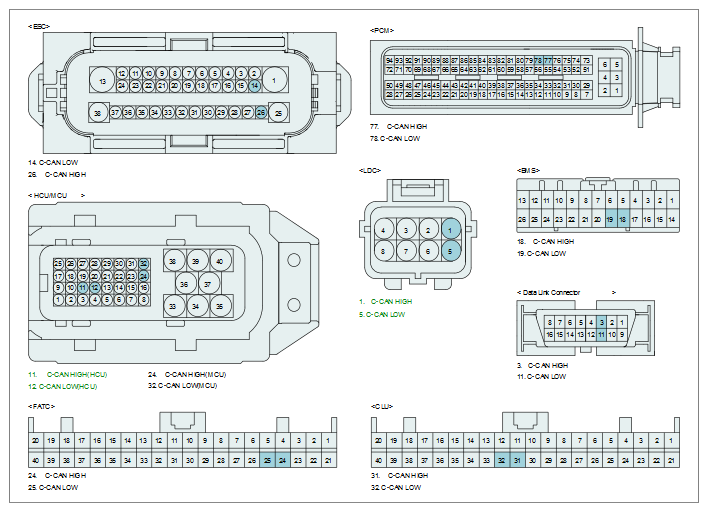

   Fig 2: LDC Connector Terminal

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured resistance within specification?

   YES

   • Check Each Module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   • Substitute with a known-good LDC and check for proper operation. If the problem is corrected, replace LDC and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Check for Open/Short in harness.
   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
