Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

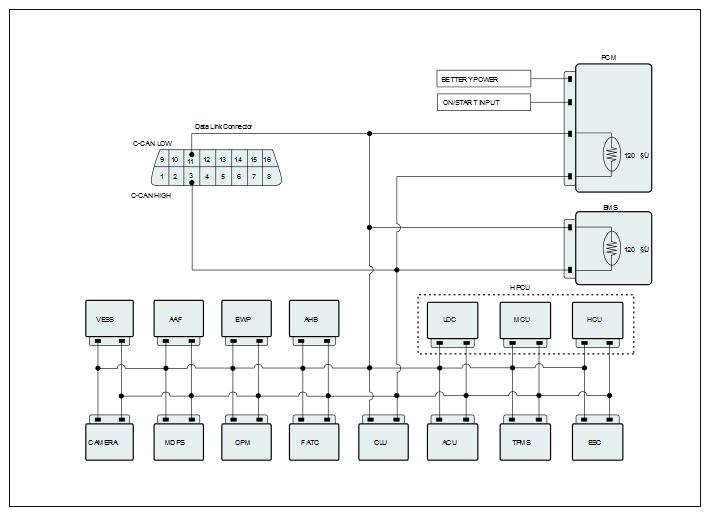

Fig 1: C-CAN Low Circuit Diagram
G10602229Courtesy of HYUNDAI MOTOR AMERICA

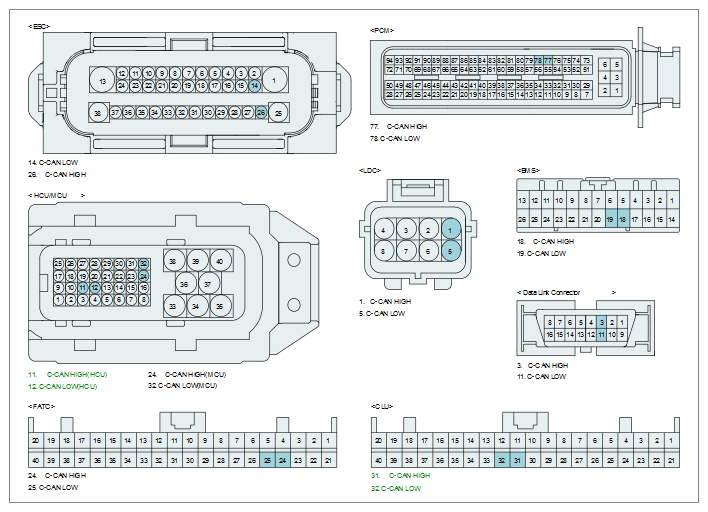

Fig 2: LDC Connector Terminal
G10602230Courtesy of HYUNDAI MOTOR AMERICA
