Section 84 (HEV Control System Diagnosis (HEV))
>>
DTC U0122: Lost Communication With Vehicle Dynamics Control Module
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

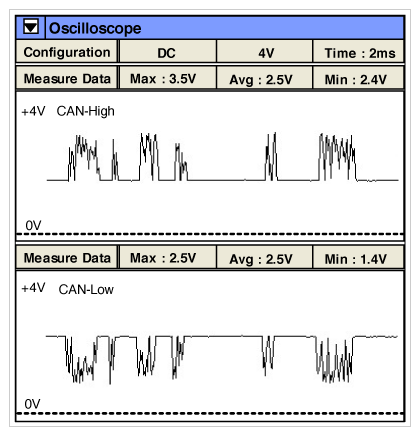

Fig 1: CAN-High Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
