Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

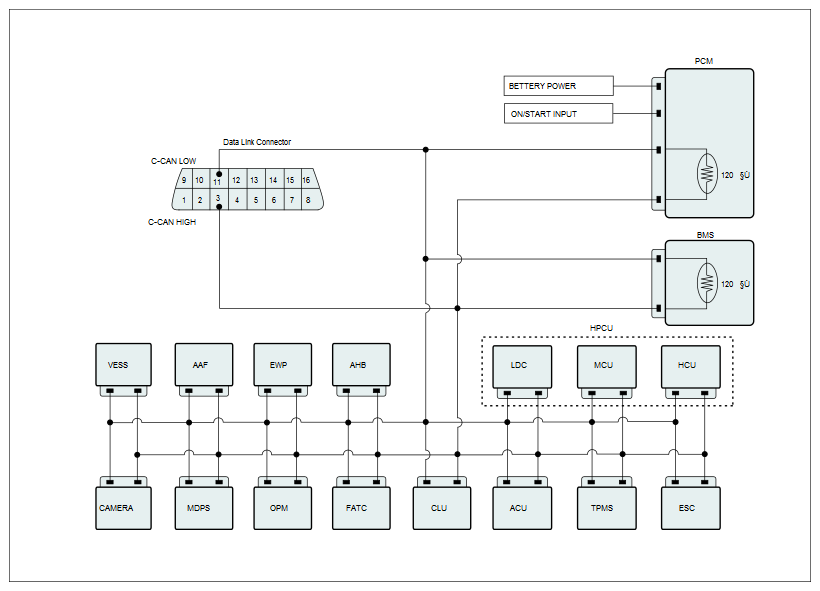

Fig 1: PCM Circuit Diagram
G10602209Courtesy of HYUNDAI MOTOR AMERICA

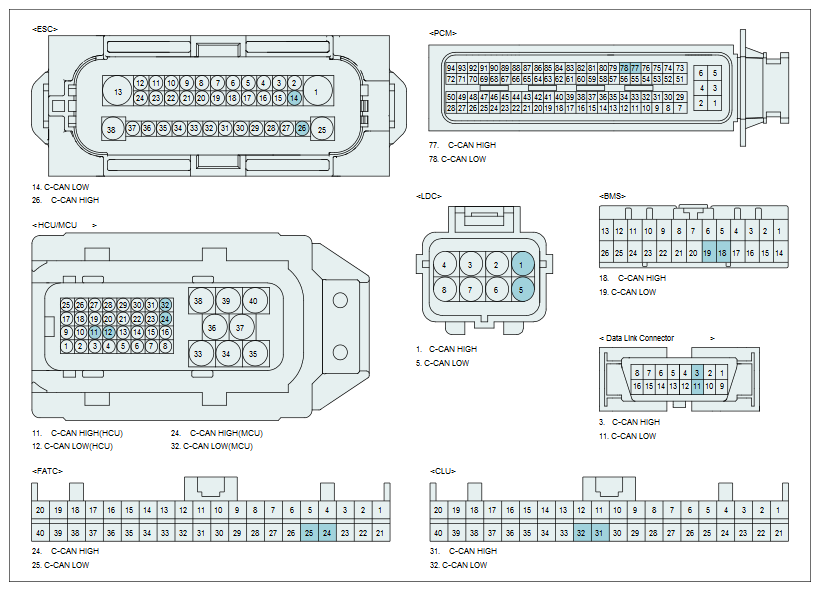

Fig 2: LDC Connector Terminal
G10602210Courtesy of HYUNDAI MOTOR AMERICA
