Section 84 (HEV Control System Diagnosis (HEV))
>>
DTC U0101: Lost Communication With TCM (C-CAN)
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

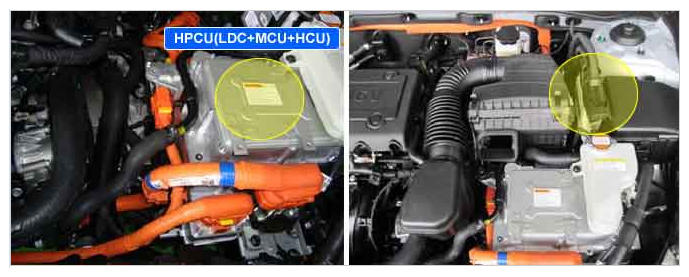

Fig 1: HCU Component Location
Courtesy of HYUNDAI MOTOR AMERICA
