Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

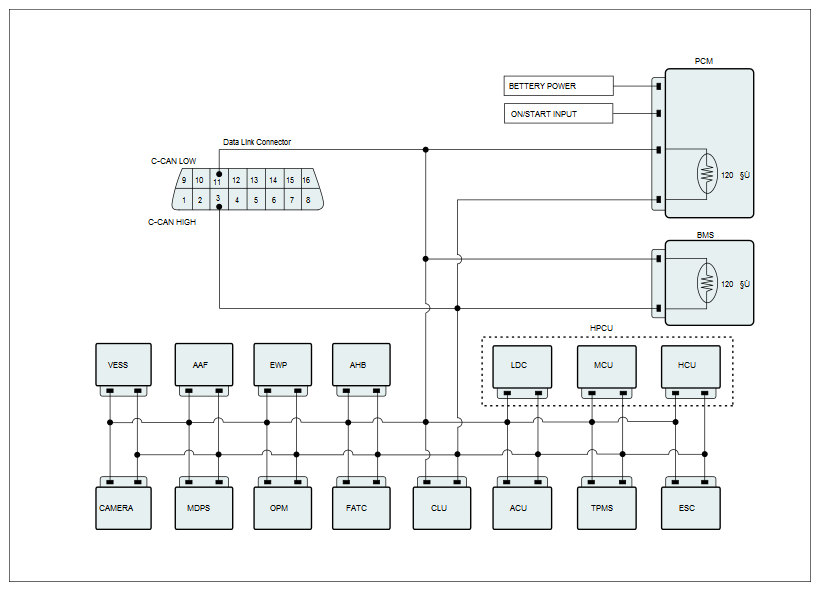

Fig 1: Data Link Connector Circuit Diagram
G10602172Courtesy of HYUNDAI MOTOR AMERICA

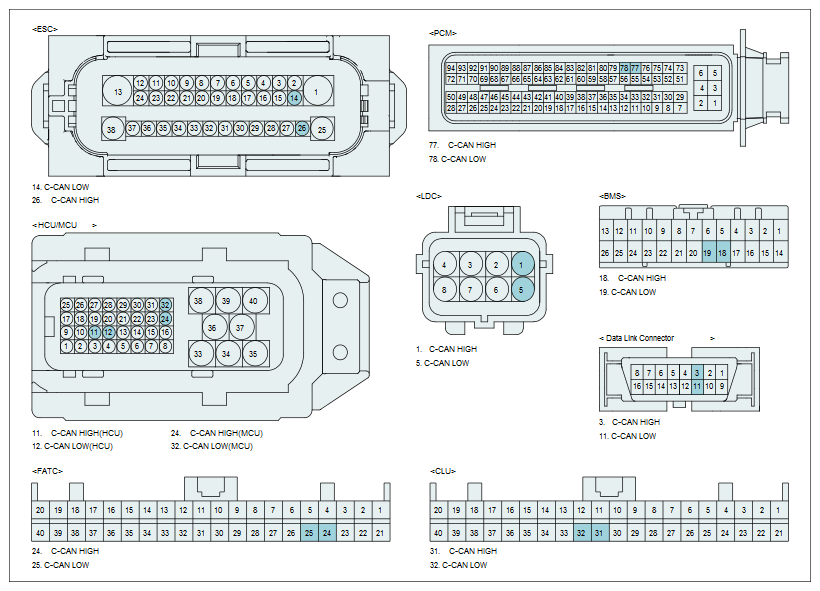

Fig 2: PCM Connector Terminals
G10602173Courtesy of HYUNDAI MOTOR AMERICA
