Signal Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
■ Check Short to Ground in Harness
- Ignition "OFF".
- Disconnect Engine Clutch Pressure Sensor and HCU main harness connector.

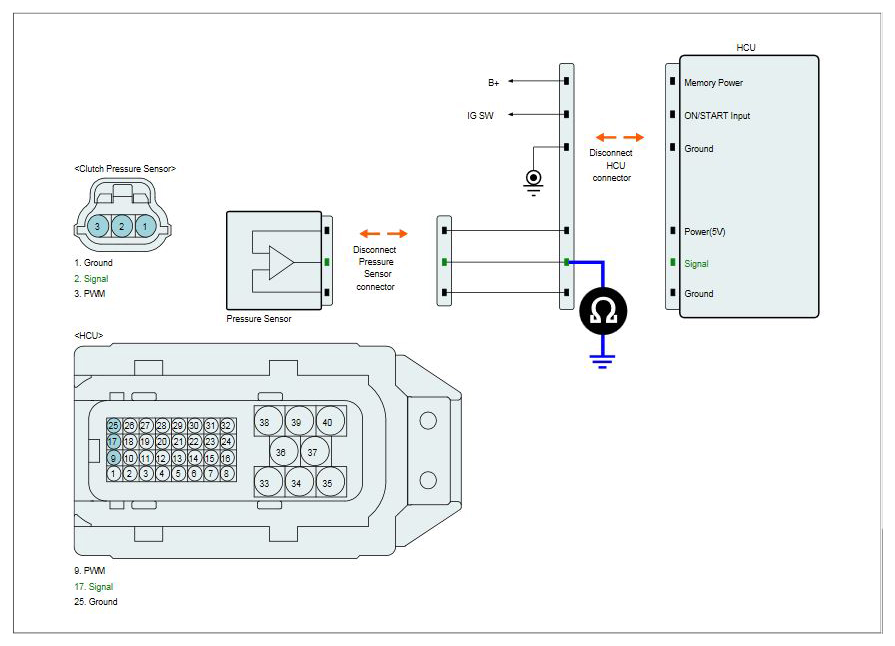

- Measure resistance between Signal terminal of HCU harness connector and chassis ground.
Specification : Infinity
- Is the measured resistance within specifications?
YES
- Go to Next procedure.
NO
- Check for short to ground in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
