Ground Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Open in Harness

Ignition "OFF".
Disconnect Engine Clutch Pressure Sensor and HCU main harness connector.
Measure resistance between Ground terminal of Engine Clutch Pressure Sensor harness connector and Ground terminal of HCU harness connector.
Specification : Below 1Ω

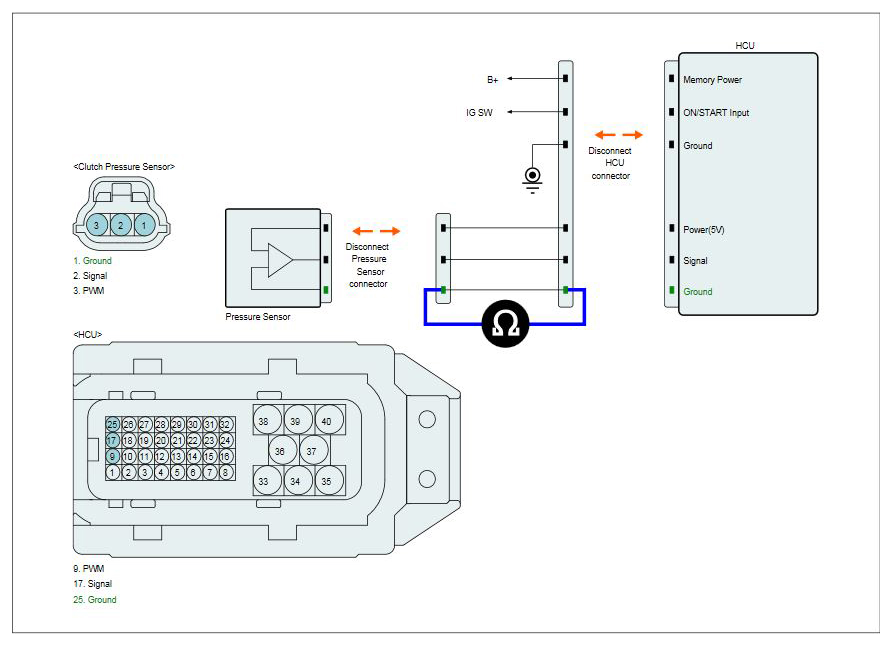

Fig 1: Engine Clutch Pressure Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Go to Next procedure.
NO
- Check for open in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
