Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
■ Check Power in Harness
- Ignition "OFF".
- Connect Engine Clutch Pressure Sensor harness connector.
- Ignition "ON".

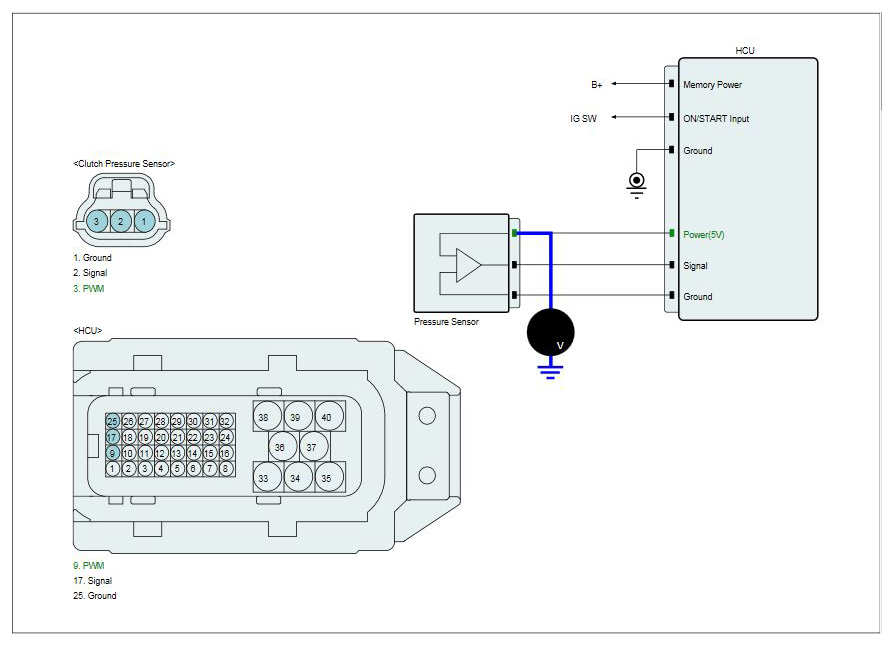

- Measure Voltage between Power terminal of Engine Clutch Pressure Sensor harness connector and chassis ground.
Specification : B +
- Is the measured Voltage within specifications?
YES
- Go to Next procedure.
NO
- Check for open and short to ground in harness.
- Check HCU Memory Power, ON/START Input, Short to battery in ground circuit and Ground condition. And repair If necessary.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Go to "COMPONENT INSPECTION " procedure.
