Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
Connect GDS and select "Data Analysis" mode.
Select "Current Data" mode and monitor "E/C Fluid Pressure Offset Stored" and "Engine Clutch Fluid Pressure" parameter.
Specification:

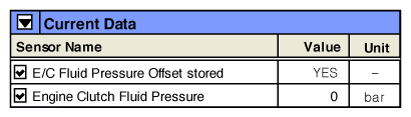

Fig 1: Screen Display - Condition Engine Clutch Not Operating
Courtesy of HYUNDAI MOTOR AMERICA

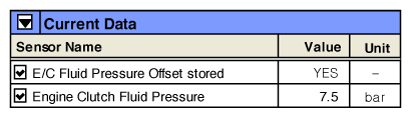

Fig 2: Screen Display - Condition Engine Clutch Operating
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured data within specifications?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
