Section 84 (HEV Control System Diagnosis (HEV))
>>
DTC P0504: Brake Switch 'A' 'B' Correlation
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

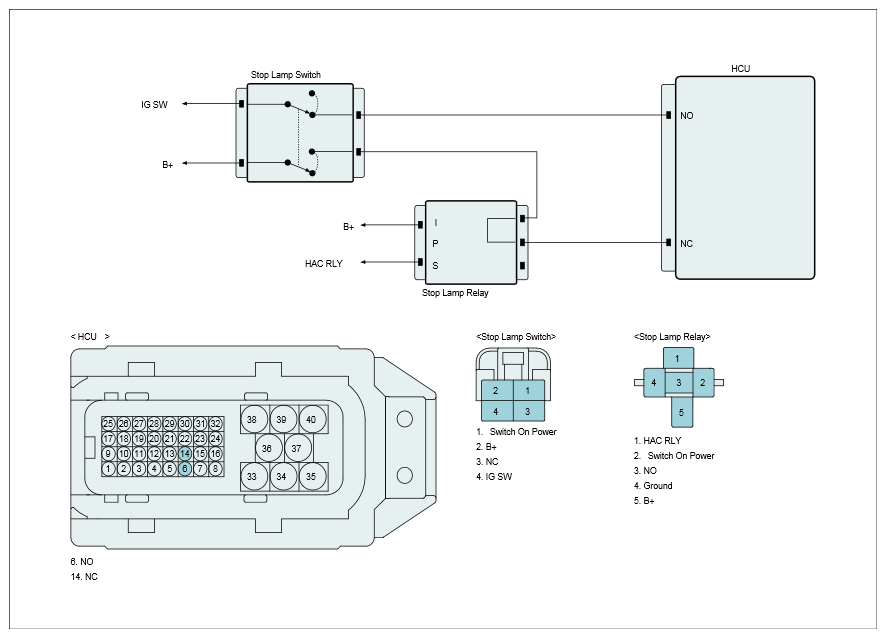

Fig 1: Brake Switch Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
