Projected Dimensions

WARNING: This page is about a different variant/trim than selected.

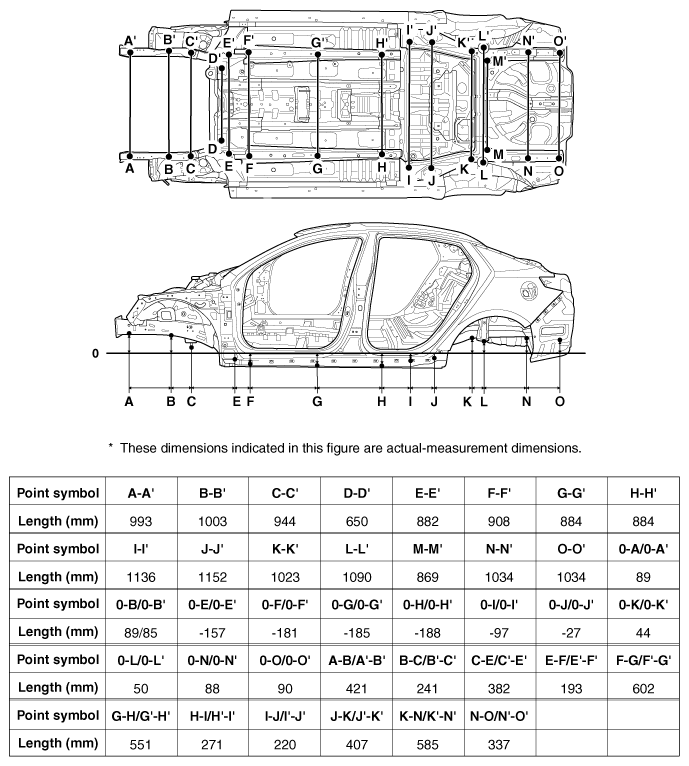

Fig 1: Identifying Under Body Dimensions (1 Of 2)
G10589448Courtesy of HYUNDAI MOTOR AMERICA

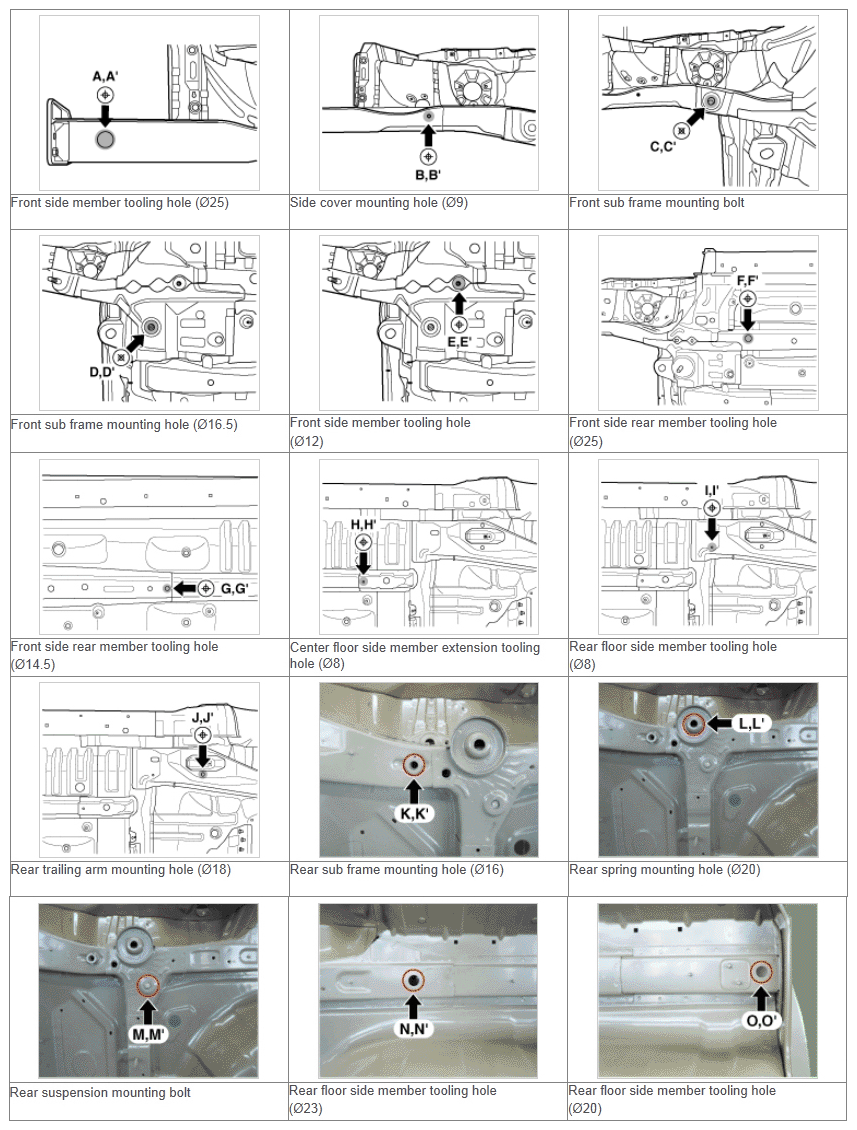

Fig 2: Identifying Under Body Dimensions (2 Of 2)
G10589449Courtesy of HYUNDAI MOTOR AMERICA
