Actual-Measurement Dimensions

WARNING: This page is about a different variant/trim than selected.

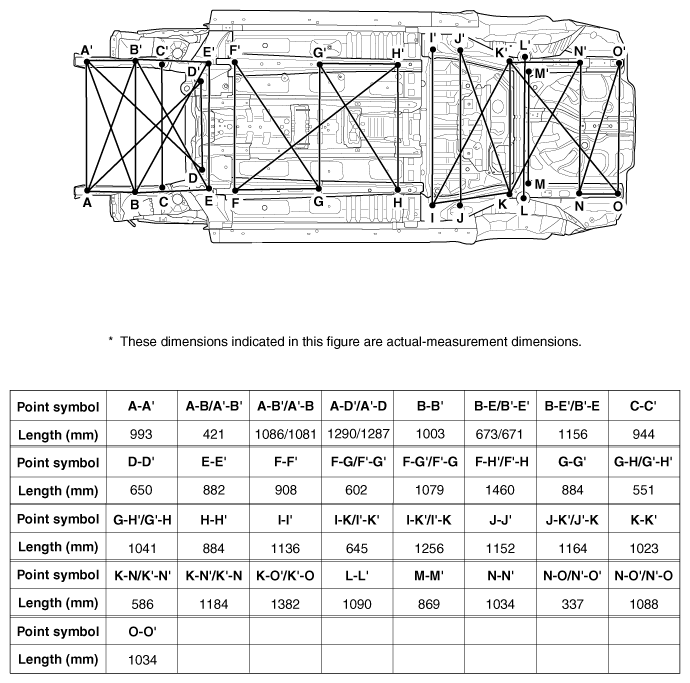

Fig 1: Identifying Actual-Measurement Dimensions (1 Of 2)
G10589450Courtesy of HYUNDAI MOTOR AMERICA

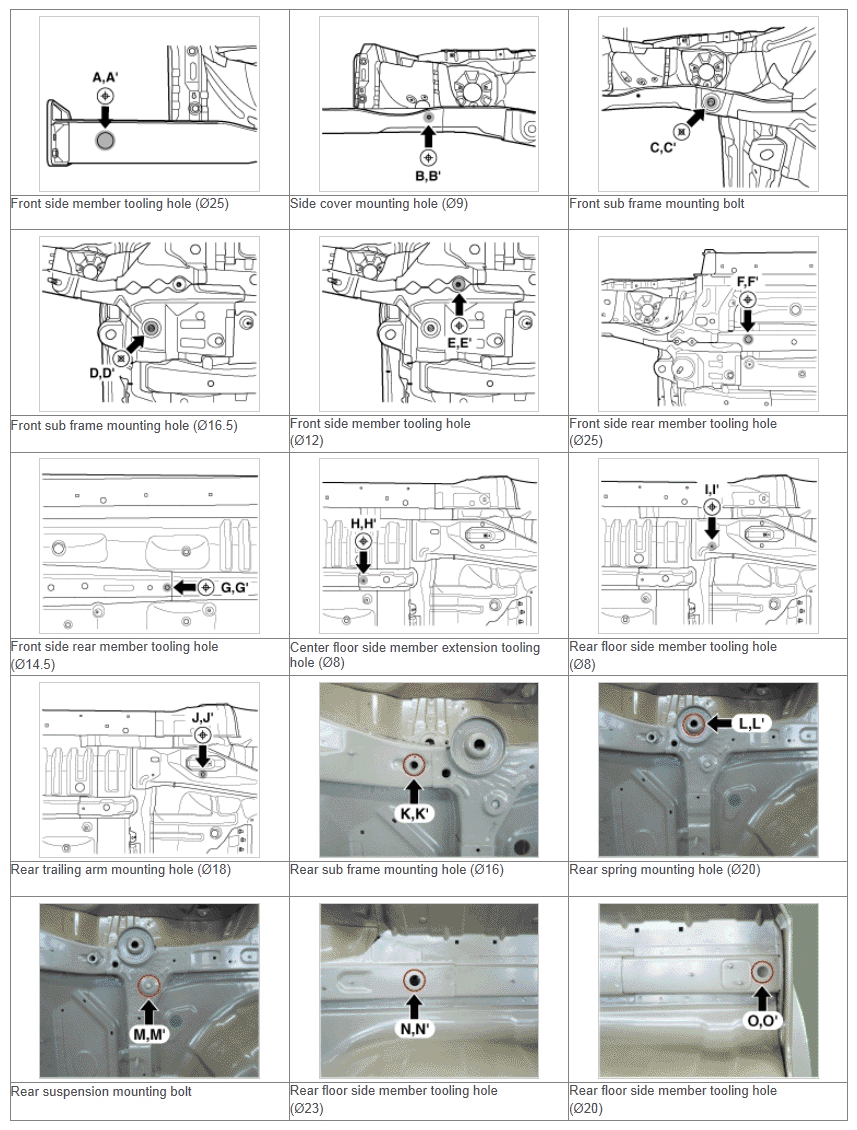

Fig 2: Identifying Actual-Measurement Dimensions (2 Of 2)
G10589451Courtesy of HYUNDAI MOTOR AMERICA
