Side Body B

WARNING: This page is about a different variant/trim than selected.

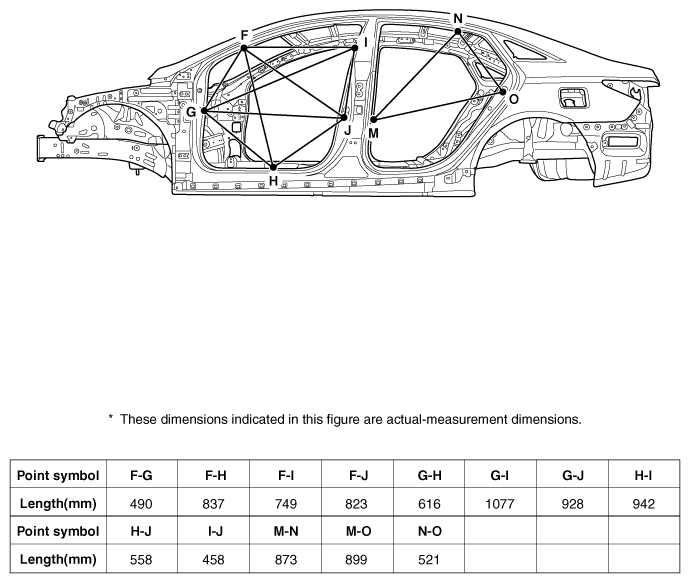

Fig 1: Identifying Side Body B Dimensions (1 Of 2)
G10589438Courtesy of HYUNDAI MOTOR AMERICA

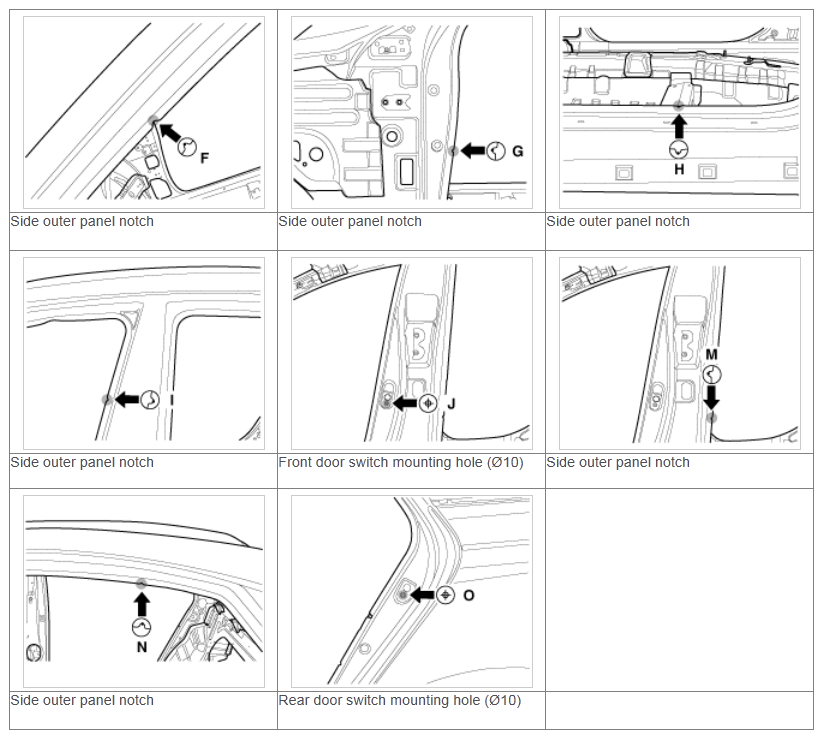

Fig 2: Identifying Side Body B Dimensions (2 Of 2)
G10589439Courtesy of HYUNDAI MOTOR AMERICA
