Side Body A

WARNING: This page is about a different variant/trim than selected.

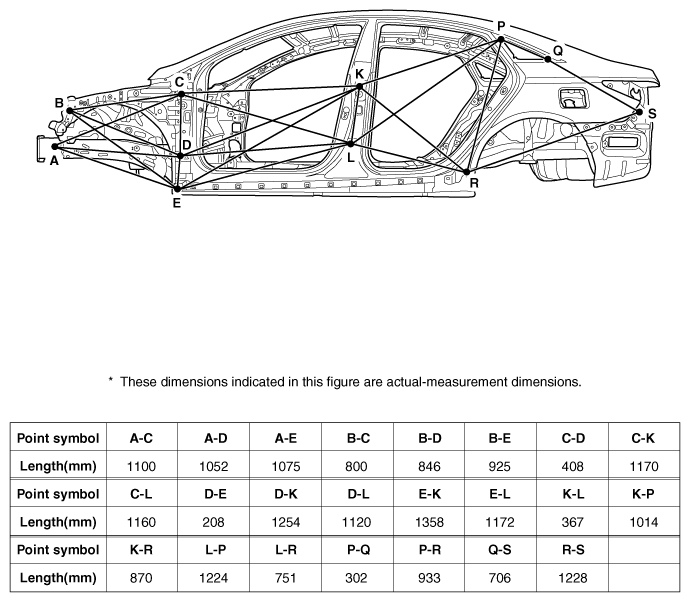

Fig 1: Identifying Side Body A Dimensions (1 Of 2)
G10589436Courtesy of HYUNDAI MOTOR AMERICA

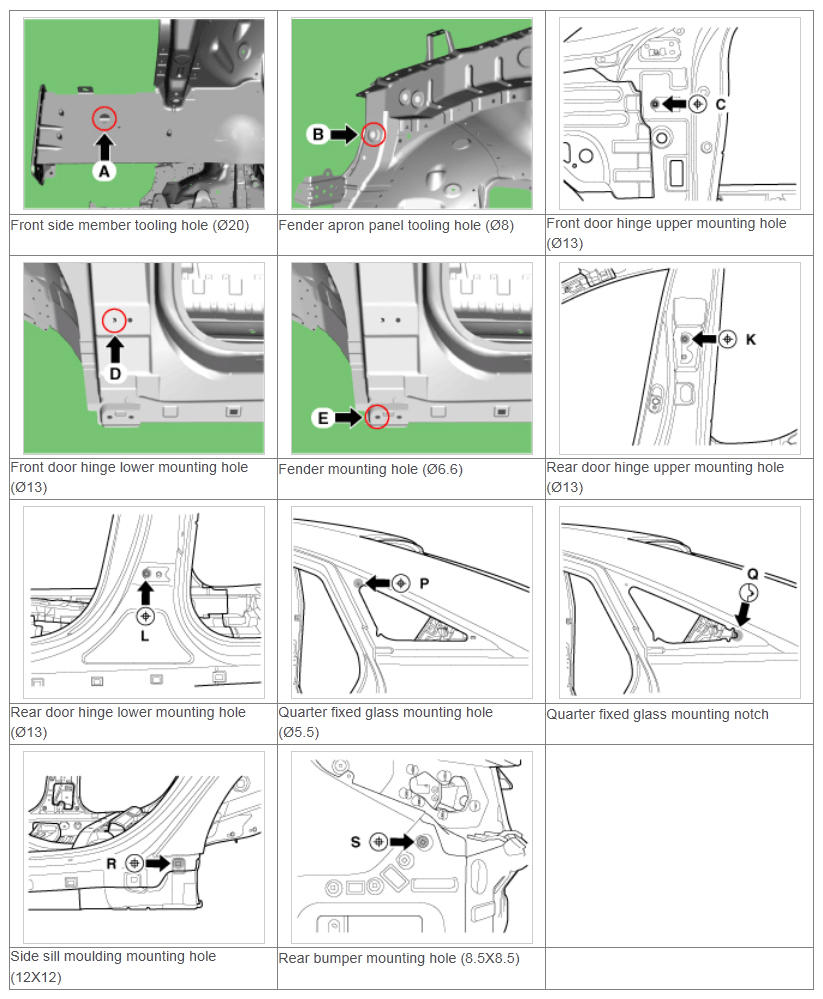

Fig 2: Identifying Side Body A Dimensions (2 Of 2)
G10589437Courtesy of HYUNDAI MOTOR AMERICA
