Body Repair

WARNING: This page is about a different variant/trim than selected.

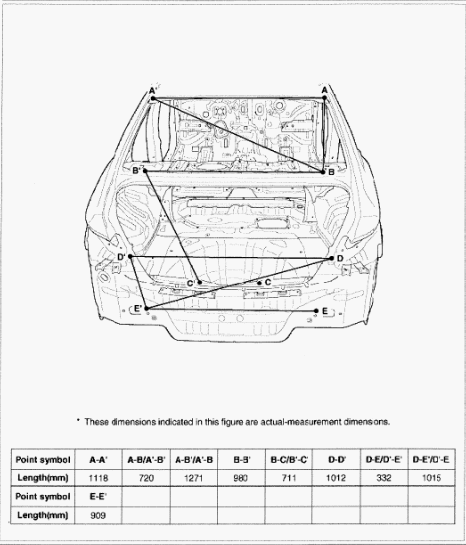

Fig 1: Identifying Rear Body Measurement Points (1 Of 2)
G00534989Courtesy of HYUNDAI MOTOR CO.

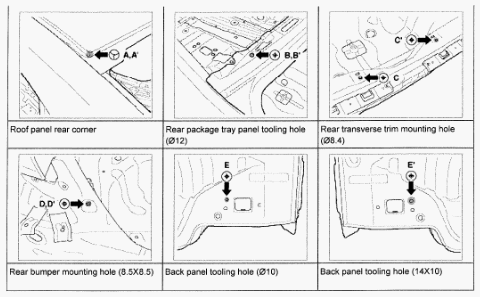

Fig 2: Identifying Rear Body Measurement Points (2 Of 2)
G00534990Courtesy of HYUNDAI MOTOR CO.
