Interior D

WARNING: This page is about a different variant/trim than selected.

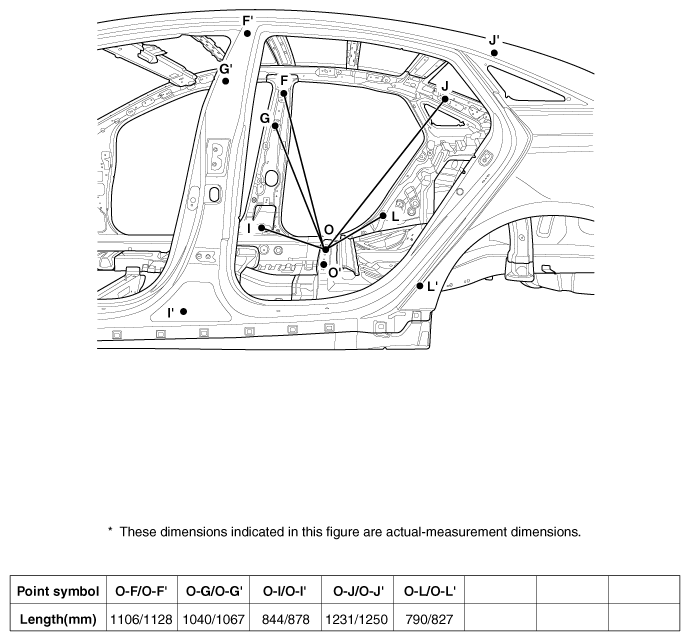

Fig 1: Identifying Body Interior D Dimensions (1 Of 2)
G10589446Courtesy of HYUNDAI MOTOR AMERICA

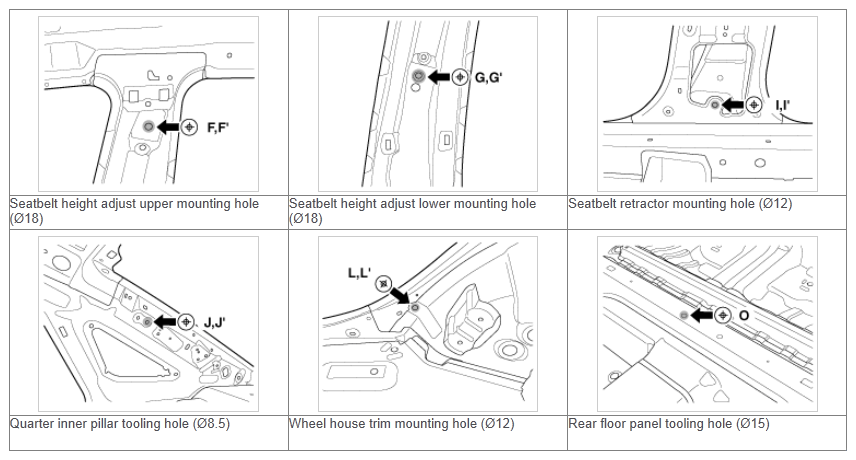

Fig 2: Identifying Body Interior D Dimensions (2 Of 2)
G10589447Courtesy of HYUNDAI MOTOR AMERICA
